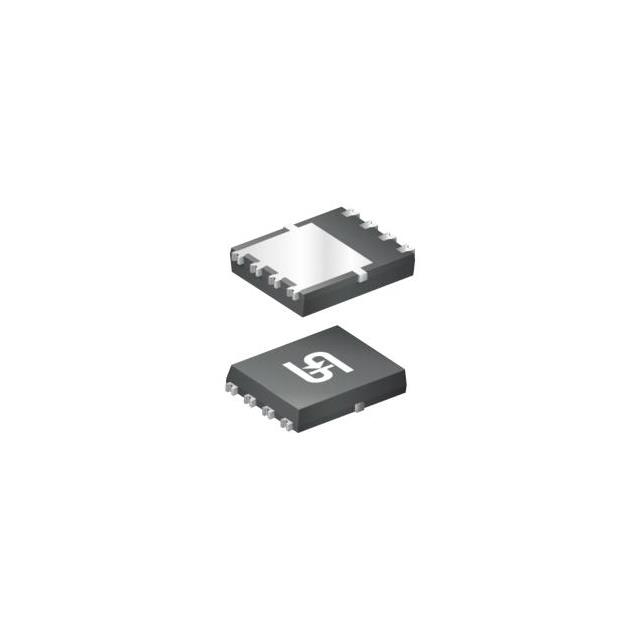

TQM043NH04LCR RLG

Teknik Özellikler

Seri

PerFET™

Rds On Max Id Vgs

4.3mOhm @ 27A, 10V

Qualification

AEC-Q101

Drive Voltage Max Rds On Min Rds On

4.5V, 10V

Çalışma Sıcaklığı

-55°C ~ 175°C (TJ)

Temel Ürün No

TQM043

Kılıf / Paket

8-PowerTDFN

Montaj Tipi

Surface Mount

Grade

Automotive

Vgsth Max Id

2.2V @ 250µA

Power Dissipation Max

100W (Tc)

Ambalaj

Tape & Reel (TR)

Gate Charge Qg Max Vgs

42 nC @ 10 V

Input Capacitance Ciss Max Vds

2480 pF @ 25 V

Fet Type

N-Channel

Current Continuous Drain Id25

20A (Ta), 54A (Tc)

Parça Durumu

Active

Tedarikçi Cihaz Paketi

8-PDFN (5x6)

Vgs Max

±16V

Drain To Source Voltage Vdss

40 V
