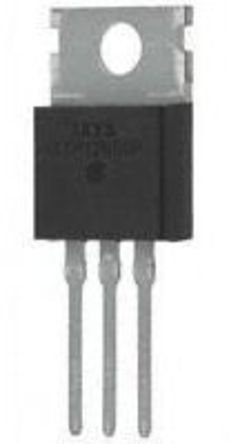

MBRF20200CT C0

Teknik Özellikler

Yayın Yılı

2011

Nonrep Pk Forward Currentmax

150A

RoHS Durumu

RoHS Compliant

Jesd30 Code

R-PSFM-T3

Voltage Forward Vf Max If

1.05V @ 20A

Number Of Elements

2

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Operating Temperature Max

150°C

Diode Configuration

1 Pair Common Cathode

Rep Pk Reverse Voltagemax

200V

Reverse Currentmax

100μA

HTS Kodu

8541.10.00.80

ECCN Kodu

EAR99

Kılıf / Paket

TO-220-3 Full Pack, Isolated Tab

Yüzey Montaj

NO

Terminal Kaplaması

Matte Tin (Sn)

Output Currentmax

10A

Terminal Sayısı

3

Diode Element Material

SILICON

Nem Hassasiyeti (MSL)

Not Applicable

Voltage Dc Reverse Vr Max

200V

JESD-609 Kodu

e3

Additional Feature

LOW POWER LOSS, UL RECOGNIZED

Current Reverse Leakage Vr

100μA @ 200V

Diode Type

Schottky

REACH Uyumluluk Kodu

compliant

Number Of Phases

1

Current Average Rectified Io

20A

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Applications

EFFICIENCY

Terminal Pozisyonu

SINGLE

Parça Durumu

Obsolete

Operating Temperature Junction

-55°C~150°C

Ambalaj

Tape & Reel (TR)

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Montaj Tipi

Through Hole
