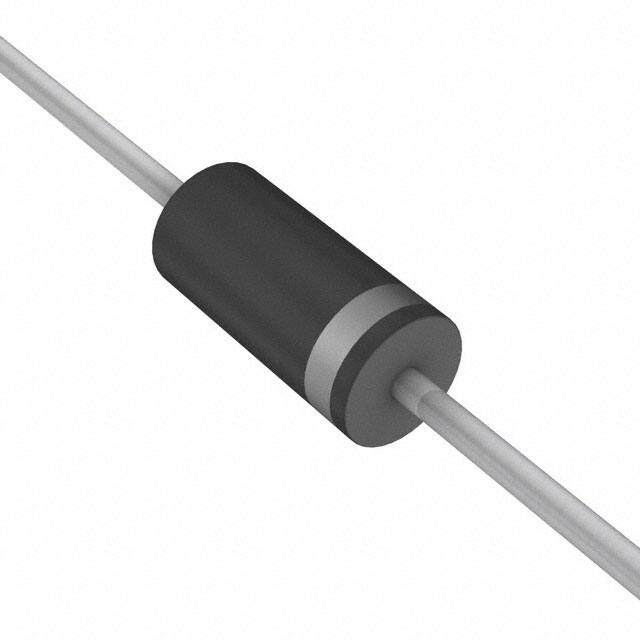

HER202G R0G

Teknik Özellikler

Additional Feature

LOW POWER LOSS

Diode Element Material

SILICON

Nem Hassasiyeti (MSL)

1 (Unlimited)

Applications

EFFICIENCY

Number Of Elements

1

Operating Temperature Junction

-55°C~150°C

Operating Temperature Max

150°C

Montaj Tipi

Through Hole

Nonrep Pk Forward Currentmax

60A

Jesd30 Code

O-PALF-W2

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Rep Pk Reverse Voltagemax

100V

Parça Durumu

Active

Voltage Dc Reverse Vr Max

100V

Diode Type

Standard

ECCN Kodu

EAR99

Terminal Formu

WIRE

Capacitance Vr F

35pF @ 4V 1MHz

Yüzey Montaj

NO

Kılıf / Paket

DO-204AC, DO-15, Axial

Ambalaj

Tape & Reel (TR)

Voltage Forward Vf Max If

1V @ 2A

Fabrika Tedarik Süresi

10 Weeks

Current Reverse Leakage Vr

5μA @ 100V

Output Currentmax

2A

Configuration

SINGLE

Reverse Recovery Time

50ns

RoHS Durumu

ROHS3 Compliant

Reverse Currentmax

5μA

HTS Kodu

8541.10.00.80

Number Of Phases

1

Current Average Rectified Io

2A

Terminal Sayısı

2

Case Connection

ISOLATED
