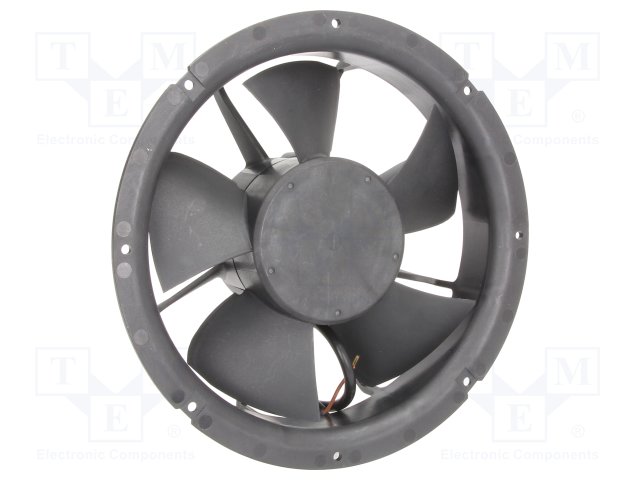

CF2207LBL-000U-HB9

Teknik Özellikler

Fan Type

Tubeaxial

Özellikler

Dual Speed, Electronic Commutation (EC), Thermal Overload Protector (TOP)

Boyut / Ölçü

Round - 250mm Dia

RoHS Durumu

ROHS3 Compliant

Current Rating Amps

0.038/0.070A

Voltage Range

180V~250VAC

Rpm

950/1400 RPM

Static Pressure

0.160/0.300 in H2O (39.8/74.7 Pa)

Noise

29.9/41.2 dB(A)

Nominal Gerilim

220V~240VAC

Fabrika Tedarik Süresi

14 Weeks

Ingress Protection

IP55 - Dust Protected, Water Resistant

Material Blade

Polybutylene Terephthalate (PBT)

Bearing Type

Ball

Seri

CF

Onay Kuruluşu

ATEX, CE, CUR, TUV, UL

Weight

2.4lbs 1.1kg

Nem Hassasiyeti (MSL)

Not Applicable

Çalışma Sıcaklığı

-40~122°F -40°C~50°C

Material Frame

Polybutylene Terephthalate (PBT)

Güç (Watt)

3.20W 6.60W

Yayın Yılı

2015

Parça Durumu

Active
