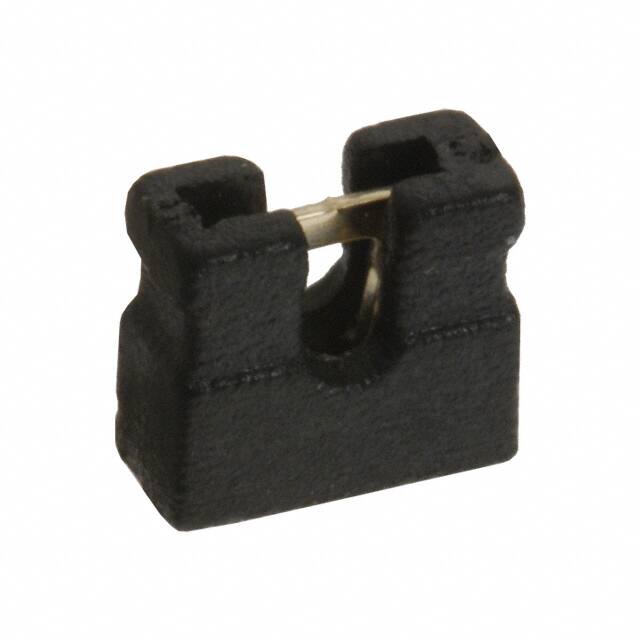

STN02SYBN

Teknik Özellikler

Housing Material

Polybutylene Terephthalate (PBT)

Pin Sayısı

2

Yükseklik

0.138 3.50mm

Contact Style

SQ PIN-SKT

Insulation Resistance

5000000000Ohm

Gender

Female Sockets

Polarization Key

POLARIZED HOUSING

Reliability

COMMERCIAL

Body Length Or Diameter

0.157 inch

Nem Hassasiyeti (MSL)

Not Applicable

Number Of Conductors

ONE

Yayın Yılı

2000

Total Number Of Contacts

2

Operating Temperature Min

-55°C

Number Of Positions Or Pins Grid

2 (1 x 2)

Nominal Gerilim

250V

Body Breadth

0.079 inch

Reference Standard

UL

Tip

Open Top

Lead Pitch

2mm

Current Rating Amps

1A per Contact

Kurşunsuz

Contains Lead

Parça Durumu

Obsolete

Sıra Sayısı

1

Contact Pattern

RECTANGULAR

Montaj Stili

STRAIGHT

Mounting Option1

LOCKING

Contact Finish

Tin

RoHS Durumu

Non-RoHS Compliant

Material Flammability Rating

UL94 V-0

Contact Materials

Bronze

Genişlik

4mm

Ambalaj

Bulk

Pitch

0.079 2.00mm

Dielectric Withstanding Voltage

1000VAC V

Flammability Rating

UL94 V-0

Operating Temperature Max

105°C
