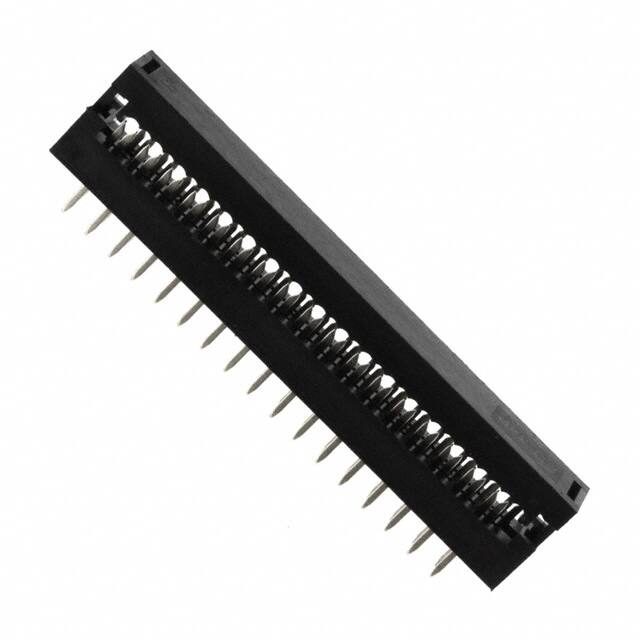

SIP110-PPPC-D17-ST-BK

Teknik Özellikler

Reference Standard

UL

Operating Temperature Min

-40°C

RoHS Durumu

ROHS3 Compliant

Boardside Pitch

0.100 2.54mm

Contact Gender

MALE

Parça Durumu

Active

Ambalaj

Tray

Contact Style

IDC

Connector Type

Ribbon Cable, DIP Header

Seri

SIP110

Wire Gauge

28 AWG

Number Of Pcb Rows

2

Bodyshell Style

PLUG

Polarization Key

POLARIZED HOUSING

Cable Termination

IDC

Özellikler

Feed Through

Montaj Tipi

Through Hole, Press-Fit

Operating Temperature Max

105°C

Row Spacing

0.100 (2.54mm)

Insulation Resistance

5000000000Ohm

Yayın Yılı

2009

Number Of Positions Loaded

All

Dielectric Withstanding Voltage

1000VAC V

Pozisyon Sayısı

34

Renk

Black

Cable Pitch

0.050 1.27mm

Montaj

Press Fit, Through Hole

Pitch

2.54mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Body Length Or Diameter

1.913 inch

Contact Pattern

RECTANGULAR

Sıra Sayısı

2

Fabrika Tedarik Süresi

4 Weeks

Insulation Materials

POLYBUTYLENE TEREPHTHALATE

Reliability

COMMERCIAL

Rated Current Signal

1A

Wirecable Gauge

28 AWG

Contact Finish Thickness

Flash

Contact Materials

PHOSPHOR BRONZE

Pcb Contact Pattern

RECTANGULAR
