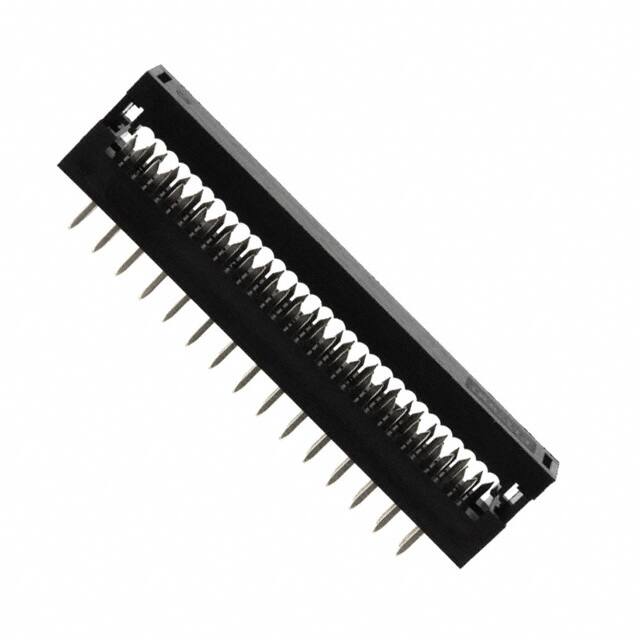

SIP110-PPPC-D15-ST-BK

Teknik Özellikler

Total Number Of Contacts

30

Termination Type

SOLDER

Contact Finish

Gold

Contact Materials

PHOSPHOR BRONZE

Contact Finish Thickness

Flash

Wirecable Gauge

28 AWG

Pcb Contact Pattern

RECTANGULAR

Number Of Conductors

ONE

Insulation Materials

POLYBUTYLENE TEREPHTHALATE

Fabrika Tedarik Süresi

4 Weeks

Reliability

COMMERCIAL

Rated Current Signal

1A

Renk

Black

Montaj

Press Fit, Through Hole

Cable Pitch

0.050 1.27mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Length Termination

0.134 inch

Pitch

2.54mm

Contact Pattern

RECTANGULAR

Body Length Or Diameter

1.713 inch

Sıra Sayısı

2

Dielectric Withstanding Voltage

1000VAC V

Number Of Positions Loaded

All

Pozisyon Sayısı

30

Operating Temperature Max

105°C

Insulation Resistance

5000000000Ohm

Row Spacing

0.100 (2.54mm)

Yayın Yılı

2009

Contact Gender

MALE

Wire Gauge

28 AWG

Connector Type

Ribbon Cable, DIP Header

Seri

SIP110

Parça Durumu

Active

Ambalaj

Tray

Contact Style

IDC

Bodyshell Style

PLUG

Number Of Pcb Rows

2

Montaj Tipi

Through Hole, Press-Fit

Özellikler

Feed Through

Cable Termination

IDC
