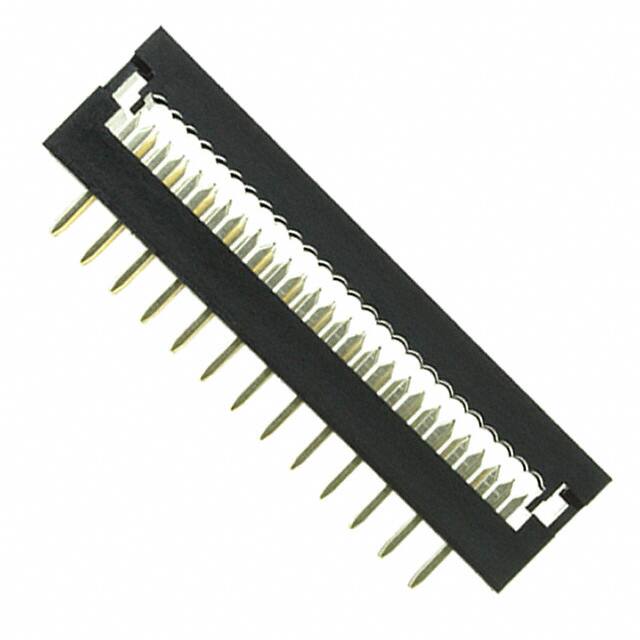

SIP110-PPPC-D13-ST-BK

Teknik Özellikler

Parça Durumu

Active

Ambalaj

Tray

Contact Style

IDC

Wire Gauge

28 AWG

Connector Type

Ribbon Cable, DIP Header

Seri

SIP110

Contact Gender

MALE

Montaj Tipi

Through Hole, Press-Fit

Özellikler

Feed Through

Cable Termination

IDC

Polarization Key

POLARIZED HOUSING

Number Of Pcb Rows

2

Bodyshell Style

PLUG

Operating Temperature Min

-40°C

Reference Standard

UL

Boardside Pitch

0.100 2.54mm

RoHS Durumu

ROHS3 Compliant

Dielectric Withstanding Voltage

1000VAC V

Number Of Positions Loaded

All

Pozisyon Sayısı

26

Operating Temperature Max

105°C

Yayın Yılı

2009

Insulation Resistance

5000000000Ohm

Row Spacing

0.100 (2.54mm)

Reliability

COMMERCIAL

Fabrika Tedarik Süresi

4 Weeks

Insulation Materials

POLYBUTYLENE TEREPHTHALATE

Rated Current Signal

1A

Nem Hassasiyeti (MSL)

1 (Unlimited)

Length Termination

0.134 inch

Pitch

2.54mm

Renk

Black

Montaj

Press Fit, Through Hole

Cable Pitch

0.050 1.27mm

Sıra Sayısı

2

Contact Pattern

RECTANGULAR

Total Number Of Contacts

26

Contact Finish

Gold

Termination Type

SOLDER

Pcb Contact Pattern

RECTANGULAR
