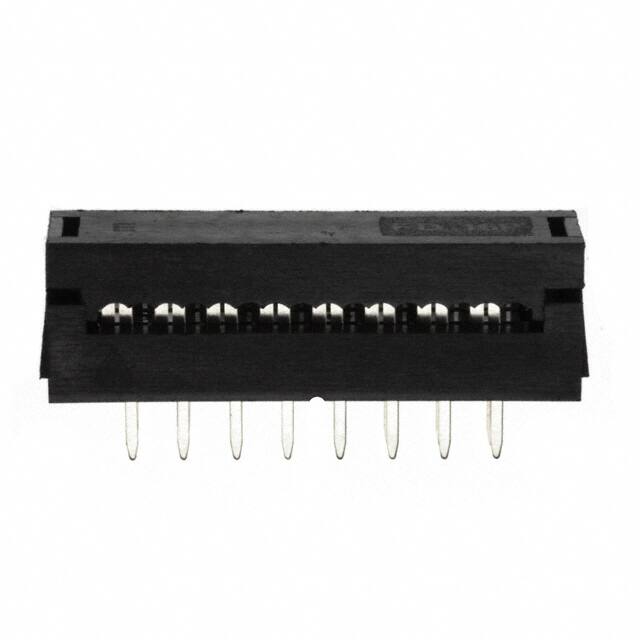

SIP110-PPPC-D08-ST-BK

Teknik Özellikler

Contact Gender

MALE

Parça Durumu

Active

Ambalaj

Tray

Contact Style

IDC

Wire Gauge

28 AWG

Seri

SIP110

Connector Type

Ribbon Cable, DIP Header

Number Of Pcb Rows

2

Bodyshell Style

PLUG

Montaj Tipi

Through Hole, Press-Fit

Özellikler

Feed Through

Cable Termination

IDC

Polarization Key

POLARIZED HOUSING

Reference Standard

UL

Operating Temperature Min

-40°C

RoHS Durumu

ROHS3 Compliant

Boardside Pitch

0.100 2.54mm

Dielectric Withstanding Voltage

1000VAC V

Number Of Positions Loaded

All

Pozisyon Sayısı

16

Operating Temperature Max

105°C

Insulation Resistance

5000000000Ohm

Row Spacing

0.100 (2.54mm)

Yayın Yılı

2009

Fabrika Tedarik Süresi

4 Weeks

Insulation Materials

POLYBUTYLENE TEREPHTHALATE

Reliability

COMMERCIAL

Rated Current Signal

1A

Montaj

Press Fit, Through Hole

Cable Pitch

0.050 1.27mm

Renk

Black

Pitch

2.54mm

Length Termination

0.134 inch

Nem Hassasiyeti (MSL)

1 (Unlimited)

Body Length Or Diameter

1.009 inch

Contact Pattern

RECTANGULAR

Sıra Sayısı

2

Total Number Of Contacts

16

Termination Type

SOLDER

Contact Finish

Gold
