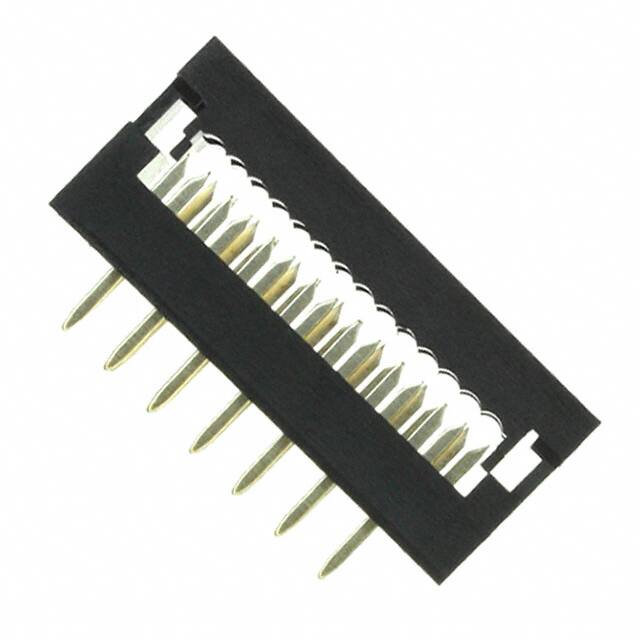

SIP110-PPPC-D07-ST-BK

Teknik Özellikler

Operating Temperature Max

105°C

Yayın Yılı

2009

Insulation Resistance

5000000000Ohm

Kurşunsuz

Lead Free

Row Spacing

0.100 (2.54mm)

Dielectric Withstanding Voltage

1000VAC V

Number Of Positions Loaded

All

Pozisyon Sayısı

14

Operating Temperature Min

-40°C

Reference Standard

UL

Boardside Pitch

0.100 2.54mm

RoHS Durumu

ROHS3 Compliant

Wire Gauge

28 AWG

Connector Type

Ribbon Cable, DIP Header

Seri

SIP110

Parça Durumu

Active

Ambalaj

Tray

Contact Style

IDC

Contact Gender

MALE

Montaj Tipi

Through Hole, Press-Fit

Özellikler

Feed Through

Cable Termination

IDC

Polarization Key

POLARIZED HOUSING

Bodyshell Style

PLUG

Number Of Pcb Rows

2

Pcb Contact Pattern

RECTANGULAR

Contact Materials

PHOSPHOR BRONZE

Contact Finish Thickness

Flash

Wirecable Gauge

28 AWG

Number Of Conductors

ONE

Total Number Of Contacts

14

Contact Finish

Gold

Termination Type

SOLDER

Nem Hassasiyeti (MSL)

1 (Unlimited)

Length Termination

0.134 inch

Pitch

2.54mm

Renk

Black

Montaj

Press Fit, Through Hole

Cable Pitch

0.050 1.27mm

Sıra Sayısı

2
