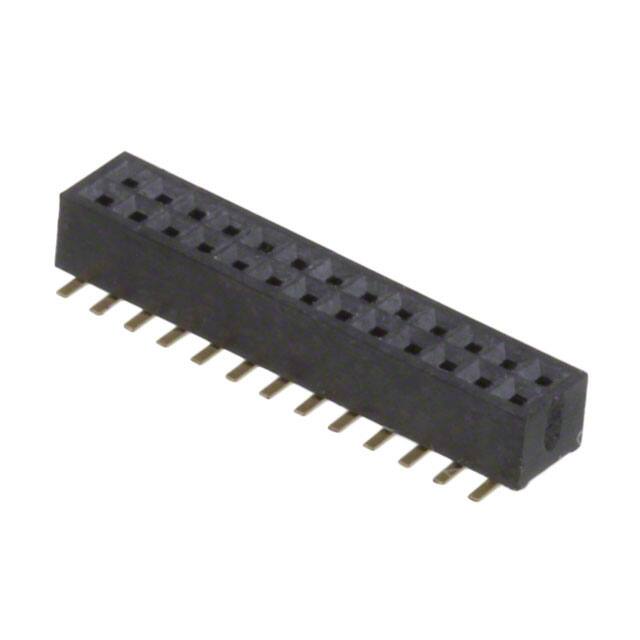

SFM210-LPSE-D13-SP-BK

Teknik Özellikler

Ambalaj

Tube

Insulation Height

0.087 2.20mm

Contact Shape

Square

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pcb Contact Pattern

RECTANGULAR

Insulation Color

Black

Pitch Mating

0.039 1.00mm

Çalışma Sıcaklığı

-40°C~125°C

Mating Contact Pitch

0.039 inch

Contact Materials

Phosphor Bronze

Contact Finish Thickness Mating

10.0μin 0.25μm

Polarization Key

POLARIZED HOUSING

Current Rating Amps

1A

Reference Standard

UL

Contact Finish Thickness Post

Flash

Montaj

Surface Mount

Dielectric Withstanding Voltage

300VAC V

Material Flammability Rating

UL94 V-0

Yayın Yılı

2009

Fabrika Tedarik Süresi

4 Weeks

Number Of Conductors

ONE

Number Of Positions Loaded

All

Insulation Materials

Liquid Crystal Polymer (LCP)

Fastening Type

Push-Pull

Pcb Contact Row Spacing

3.1496 mm

Parça Durumu

Active

Insulation Resistance

1000000000Ohm

Style

Board to Board

Total Number Of Contacts

26

Contact Finish Mating

Gold

Pozisyon Sayısı

26

Reliability

COMMERCIAL

Terminal Adımı

0.9906mm

Seri

SFM210

Body Breadth

0.098 inch

Row Spacing Mating

0.039 (1.00mm)

Özellikler

Board Guide

Kurşunsuz

Lead Free

Terminal

Solder

Sıra Sayısı

2
