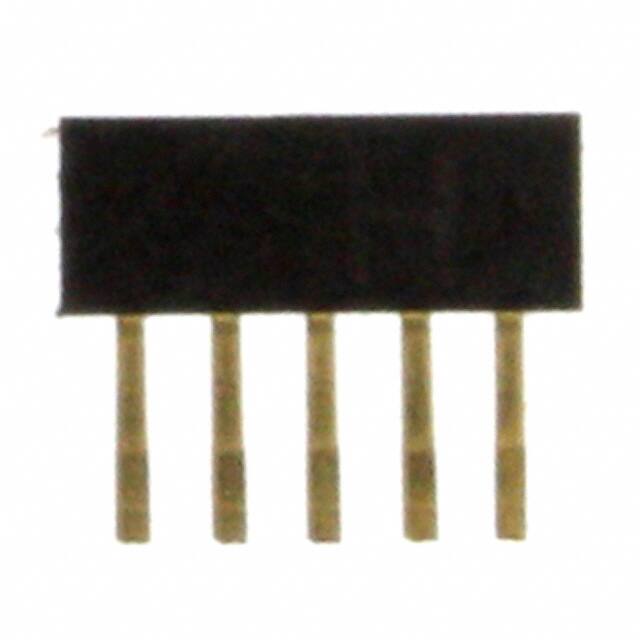

SFM210-LPSE-D05-ST-BK

Teknik Özellikler

Insulation Color

Black

Mating Contact Pitch

0.039 inch

Çalışma Sıcaklığı

-40°C~125°C

Pitch Mating

0.039 1.00mm

Contact Shape

Square

Insulation Height

0.083 2.10mm

Ambalaj

Tube

Pcb Contact Pattern

RECTANGULAR

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Materials

Phosphor Bronze

Contact Finish Thickness Mating

10.0μin 0.25μm

Polarization Key

POLARIZED HOUSING

Current Rating Amps

1A

Reference Standard

UL

Montaj

Through Hole

Contact Finish Thickness Post

Flash

Material Flammability Rating

UL94 V-0

Contact Length Post

0.094 2.40mm

Yayın Yılı

2009

Number Of Positions Loaded

All

Insulation Materials

Liquid Crystal Polymer (LCP)

Fabrika Tedarik Süresi

5 Weeks

Number Of Conductors

ONE

Pcb Contact Row Spacing

.9906 mm

Fastening Type

Push-Pull

Parça Durumu

Active

Style

Board to Board

Seri

SFM210

Length Termination

0.094 inch

Terminal Adımı

0.9906mm

Reliability

COMMERCIAL

Pozisyon Sayısı

10

Contact Finish Mating

Gold

Row Spacing Mating

0.039 (1.00mm)

Body Breadth

0.098 inch

Kurşunsuz

Lead Free

Sıra Sayısı

2

Terminal

Solder

Contact Type

Female Socket

Number Of Pcb Rows

2
