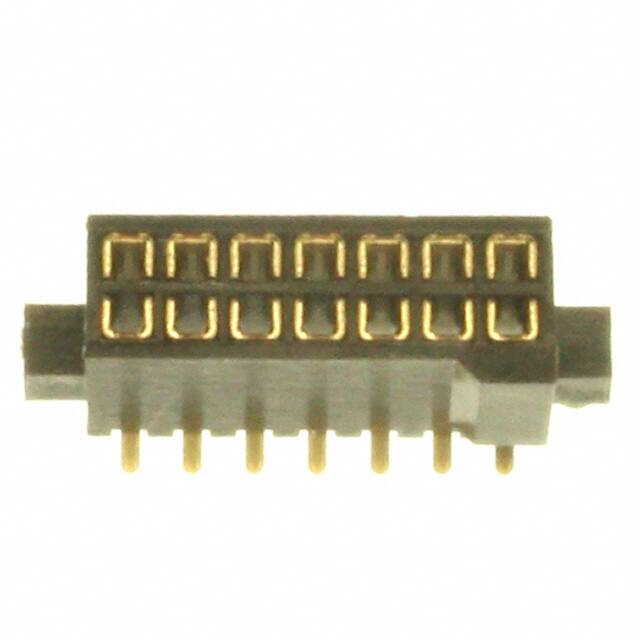

SFH31-NPPB-D07-SP-BK

Teknik Özellikler

Reference Standard

UL

Row Spacing Mating

0.050 (1.27mm)

Material Flammability Rating

UL94 V-0

Yayın Yılı

2009

Ambalaj

Tube

Pozisyon Sayısı

14

Nem Hassasiyeti (MSL)

1 (Unlimited)

Polarization Key

POLARIZED HOUSING

Number Of Positions Loaded

All

Contact Finish Thickness Mating

Flash

Contact Type

Female Socket

Fabrika Tedarik Süresi

4 Weeks

Dielectric Withstanding Voltage

500VAC V

Total Number Of Contacts

14

Sıra Sayısı

2

Pcb Contact Pattern

RECTANGULAR

Contact Materials

Phosphor Bronze

Fastening Type

Push-Pull

Body Depth

0.173 inch

Number Of Conductors

ONE

Montaj

Surface Mount

Seri

SFH31

Özellikler

Board Guide

Contact Shape

Square

Çalışma Sıcaklığı

-40°C~105°C

Pitch Mating

0.050 1.27mm

Insulation Height

0.173 4.40mm

Insulation Resistance

1000000000Ohm

RoHS Durumu

ROHS3 Compliant

Number Of Pcb Rows

2

Contact Finish Mating

Gold

Parça Durumu

Active

Mating Contact Pitch

0.05 inch

Insulation Materials

Polyamide (PA), Nylon

Style

Board to Board

Reliability

COMMERCIAL

Insulation Color

Black

Terminal

Solder

Current Rating Amps

1A

Montaj Tipi

Surface Mount
