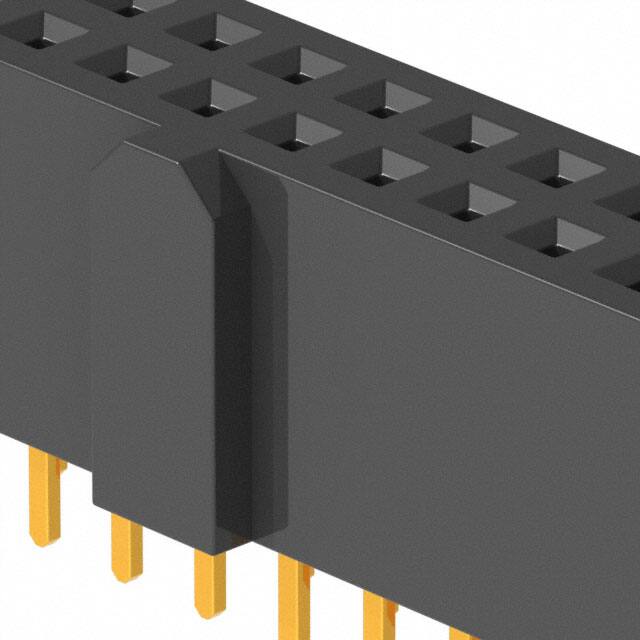

SFH11-PBPC-D20-ST-BK

Teknik Özellikler

Mating Contact Pitch

0.1 inch

Insulation Materials

Polybutylene Terephthalate (PBT)

Number Of Pcb Rows

2

Contact Finish Mating

Gold

Parça Durumu

Active

Insulation Resistance

1000000000Ohm

RoHS Durumu

ROHS3 Compliant

Insulation Height

0.335 8.51mm

Connector Type

Header

Montaj Tipi

Through Hole

Kurşunsuz

Lead Free

Terminal

Solder

Insulation Color

Black

Reliability

COMMERCIAL

Style

Board to Board

Contact Length Post

0.126 3.20mm

Rated Current Signal

3A

Number Of Conductors

ONE

Montaj

Through Hole

Fastening Type

Push-Pull

Body Depth

0.335 inch

Yükseklik

8.5mm

Pitch Mating

0.100 2.54mm

Çalışma Sıcaklığı

-40°C~105°C

Contact Shape

Square

Özellikler

Polarizing Key

Seri

SFH11

Dielectric Withstanding Voltage

500VAC V

Contact Type

Female Socket

Fabrika Tedarik Süresi

5 Weeks

ECCN Kodu

EAR99

Contact Materials

Brass

Pcb Contact Pattern

RECTANGULAR

Sıra Sayısı

2

Akım Değeri

3A

Material Flammability Rating

UL94 V-0

Row Spacing Mating

0.100 (2.54mm)

Orientation

Straight

Reference Standard

UL

Contact Finish Thickness Mating

Flash
