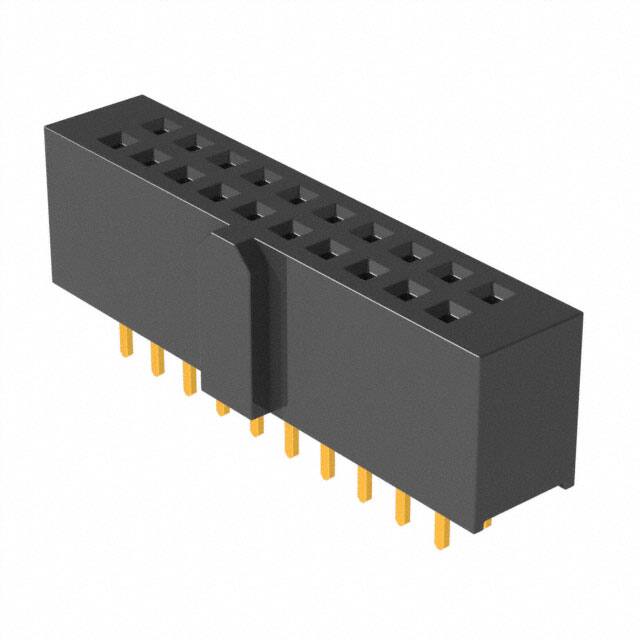

SFH11-PBPC-D10-ST-BK

Teknik Özellikler

Contact Length Post

0.126 3.20mm

Fastening Type

Push-Pull

Body Depth

0.335 inch

Number Of Conductors

ONE

Montaj

Through Hole

Çalışma Sıcaklığı

-40°C~105°C

Contact Shape

Square

Pitch Mating

0.100 2.54mm

Seri

SFH11

Özellikler

Polarizing Key

Number Of Pcb Rows

2

Contact Finish Mating

Gold

Parça Durumu

Active

Mating Contact Pitch

0.1 inch

Insulation Materials

Polybutylene Terephthalate (PBT)

Insulation Height

0.335 8.51mm

Insulation Resistance

1000000000Ohm

RoHS Durumu

ROHS3 Compliant

Montaj Tipi

Through Hole

Kurşunsuz

Lead Free

Connector Type

Header

Insulation Color

Black

Reliability

COMMERCIAL

Style

Board to Board

Current Rating Amps

3A

Terminal

Solder

Row Spacing Mating

0.100 (2.54mm)

Material Flammability Rating

UL94 V-0

Reference Standard

UL

Polarization Key

POLARIZED HOUSING

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pozisyon Sayısı

20

Contact Finish Thickness Mating

Flash

Number Of Positions Loaded

All

Ambalaj

Tray

Yayın Yılı

2009

JESD-609 Kodu

e4

Contact Type

Female Socket

Fabrika Tedarik Süresi

5 Weeks

Dielectric Withstanding Voltage

500VAC V
