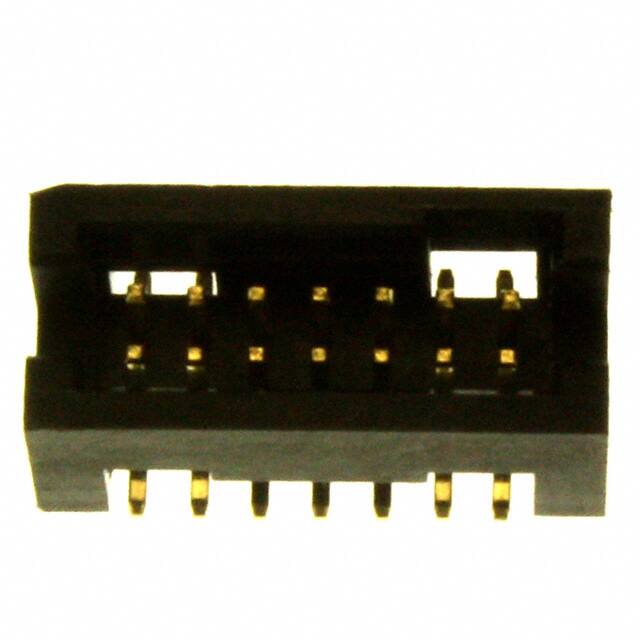

SBH31-NBPB-D07-SP-BK

Teknik Özellikler

Ambalaj

Tube

Kurşunsuz

Lead Free

Style

Board to Board

Number Of Conductors

ONE

Nem Hassasiyeti (MSL)

1 (Unlimited)

Material Flammability Rating

UL94 V-0

Fastening Type

Push-Pull

Çalışma Sıcaklığı

-40°C~105°C

Row Spacing Mating

0.050 (1.27mm)

Sıra Sayısı

2

Mating Contact Pitch

0.05 inch

Yayın Yılı

2009

Montaj

Surface Mount

Pozisyon Sayısı

14

Contact Finish Mating

Gold

Montaj Tipi

Surface Mount

Fabrika Tedarik Süresi

4 Weeks

Pcb Contact Pattern

RECTANGULAR

Reference Standard

UL

Insulation Height

0.213 5.40mm

Seri

SBH31

Shrouding

Shrouded - 4 Wall

Insulation Materials

Polyamide (PA9T), Nylon 9T

Contact Finish Thickness Mating

Flash

Özellikler

Board Guide

Contact Materials

Brass

Connector Type

Header

Current Rating Amps

1A

Reliability

COMMERCIAL

Insulation Resistance

1000000000Ohm

Contact Shape

Square

Polarization Key

POLARIZED HOUSING

Insulation Color

Black

Contact Type

Male Pin

RoHS Durumu

ROHS3 Compliant

Pitch Mating

0.050 1.27mm

Terminal

Solder

Parça Durumu

Active

Stack Height Mating

6mm

Number Of Positions Loaded

All
