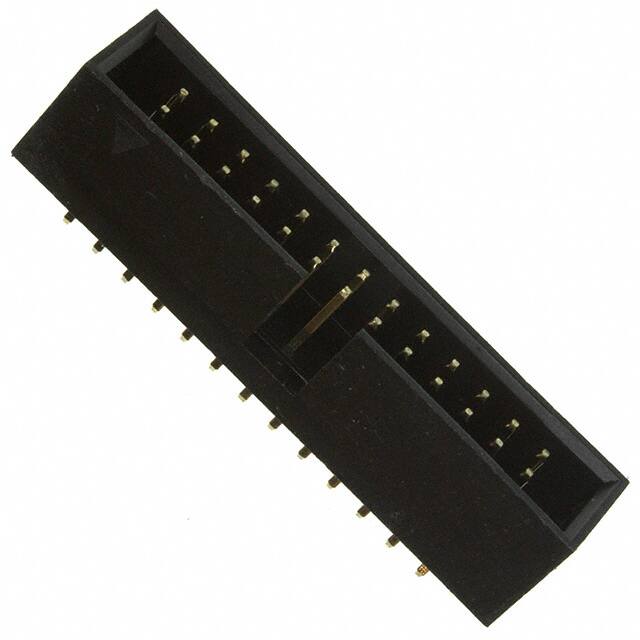

SBH11-PBPC-D13-ST-BK

Teknik Özellikler

Insulation Resistance

1000000000Ohm

Özellikler

Keying Slot

Contact Materials

Brass

Ul Flammability Code

94V-0

Iec Conformance

NO

Insulation Color

Black

JESD-609 Kodu

e4

Contact Shape

Square

Body Depth

0.346 inch

Terminal

Solder

Body Breadth

0.358 inch

Pitch Mating

0.100 2.54mm

Mating Information

MULTIPLE MATING PARTS AVAILABLE

RoHS Durumu

ROHS3 Compliant

Number Of Pcb Rows

2

Stack Height Mating

9.65mm 11.2mm 13.35mm 18.35mm

Çalışma Sıcaklığı

-40°C~105°C

Row Spacing Mating

0.100 (2.54mm)

Contact Length Post

0.118 3.00mm

Number Of Conductors

ONE

Nem Hassasiyeti (MSL)

1 (Unlimited)

Style

Board to Board or Cable

Montaj Tipi

Through Hole

Montaj

Through Hole

Mating Contact Pitch

0.1 inch

Length Termination

0.118 inch

Fabrika Tedarik Süresi

5 Weeks

ECCN Kodu

EAR99

Option

GENERAL PURPOSE

Insulation Materials

Polybutylene Terephthalate (PBT)

Mixed Contacts

NO

Pcb Contact Pattern

RECTANGULAR

Connector Type

Header

Mil Conformance

NO

Current Rating Amps

3A

Reliability

COMMERCIAL

Contact Finish Thickness Mating

Flash

HTS Kodu

8536.69.40.40

Contact Type

Male Pin

Polarization Key

POLARIZED HOUSING
