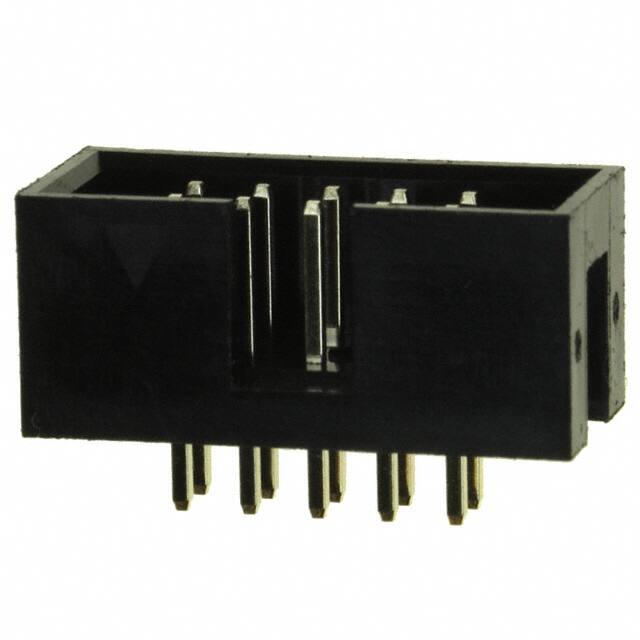

SBH11-PBPC-D05-ST-BK

Teknik Özellikler

Body Depth

0.346 inch

Mating Information

MULTIPLE MATING PARTS AVAILABLE

RoHS Durumu

ROHS3 Compliant

Pitch Mating

0.100 2.54mm

Body Breadth

0.358 inch

Terminal

Solder

Number Of Pcb Rows

2

Stack Height Mating

9.65mm 11.2mm 13.35mm 18.35mm

Özellikler

Keying Slot

Contact Materials

Brass

Ul Flammability Code

94V-0

JESD-609 Kodu

e4

Akım Değeri

3A

Iec Conformance

NO

Insulation Color

Black

Contact Shape

Square

Fabrika Tedarik Süresi

5 Weeks

ECCN Kodu

EAR99

Mixed Contacts

NO

Insulation Materials

Polybutylene Terephthalate (PBT)

Option

GENERAL PURPOSE

Pcb Contact Pattern

RECTANGULAR

Contact Length Post

0.118 3.00mm

Çalışma Sıcaklığı

-40°C~105°C

Row Spacing Mating

0.100 (2.54mm)

Style

Board to Board or Cable

Number Of Conductors

ONE

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj

Through Hole

Montaj Tipi

Through Hole

Mating Contact Pitch

0.1 inch

Length Termination

0.118 inch

Parça Durumu

Active

Number Of Positions Loaded

All

Body Length Or Diameter

0.795 inch

Contact Finish Thickness Mating

Flash

Connector Type

Header

Mil Conformance

NO

Reliability

COMMERCIAL

HTS Kodu

8536.69.40.40
