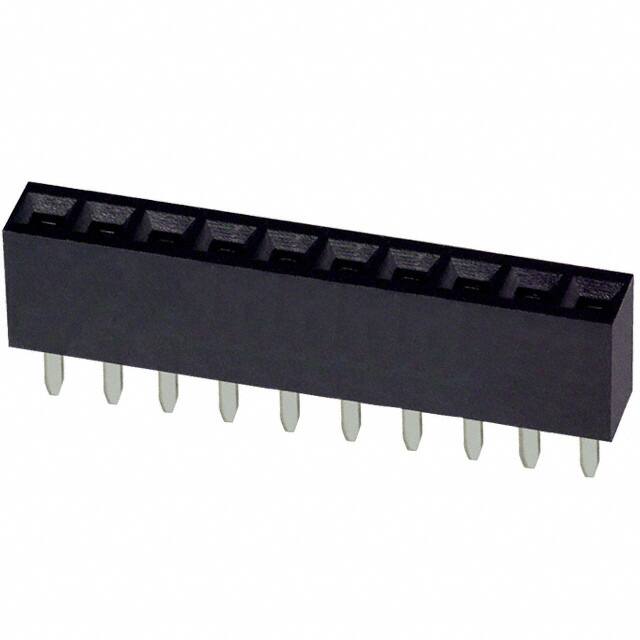

PPTC101LFBN-RC

Teknik Özellikler

Insulation Height

0.335 8.51mm

Material Flammability Rating

UL94 V-0

Nominal Gerilim

250V

JESD-609 Kodu

e3

Parça Durumu

Active

Number Of Positions Loaded

All

Pitch Mating

0.100 2.54mm

Uzunluk

25.9mm

Çalışma Sıcaklığı

-40°C~105°C

Contact Shape

Square

Number Of Conductors

ONE

Sıra Sayısı

1

Yükseklik

8.5mm

Kurşunsuz Kodu

yes

Reliability

COMMERCIAL

Lead Pitch

2.54mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Length Post

0.126 3.20mm

Terminal

Solder

Genişlik

2.5mm

Fastening Type

Push-Pull

Montaj Tipi

Through Hole

Yayın Yılı

2011

Body Depth

0.334 inch

Insulation Color

Black

RoHS Durumu

ROHS3 Compliant

Style

Board to Board

Body Breadth

0.094 inch

Montaj

Through Hole

Kurşunsuz

Lead Free

Polarization Key

POLARIZED HOUSING

Connector Type

Header

Contact Type

Female Socket

Pozisyon Sayısı

10

Insulation Materials

Polyester

Housing Material

Plastic

Contact Materials

Phosphor Bronze

Current Rating Amps

3A

Pcb Contact Pattern

RECTANGULAR

Number Of Pcb Rows

1
