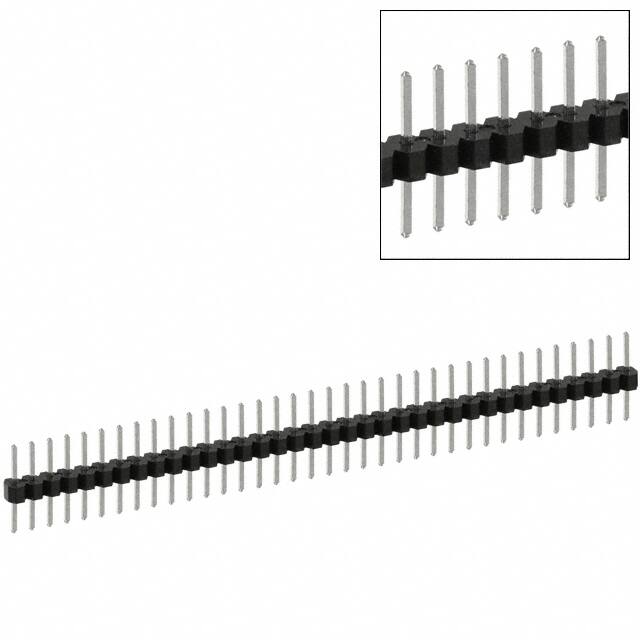

PEC36SABN

Teknik Özellikler

Contact Type

Male Pin

Parça Durumu

Active

Contact Lengthmating

0.230 5.84mm

Montaj Tipi

Through Hole

Material Flammability Rating

UL94 V-0

Yükseklik

2.54mm

Current Rating Amps

3A

Genişlik

2.54mm

Fabrika Tedarik Süresi

3 Weeks

Contact Finish Mating

Tin

Uzunluk

91.4mm

Connector Type

Header, Breakaway

Insulation Height

0.100 2.54mm

Kurşunsuz Kodu

yes

Style

Board to Board or Cable

Yayın Yılı

2008

Housing Color

Black

Overall Contact Length

0.560 14.22mm

Pitch Mating

0.100 2.54mm

Çalışma Sıcaklığı

-65°C~125°C

JESD-609 Kodu

e3

Nem Hassasiyeti (MSL)

Not Applicable

RoHS Durumu

ROHS3 Compliant

Reliability

COMMERCIAL

Number Of Positions Loaded

All

Contact Finish Thickness Post

100.0μin 2.54μm

Ambalaj

Bulk

Contact Materials

Phosphor Bronze

Gender

Male

Contact Length Post

0.230 5.84mm

Kurşunsuz

Lead Free

Montaj

Through Hole

Shrouding

Unshrouded

Number Of Pcb Rows

1

Contact Finish Thickness Mating

100.0μin 2.54μm

Terminal

Solder

Sıra Sayısı

1

Fastening Type

Push-Pull

Reference Standard

UL

Number Of Conductors

ONE
