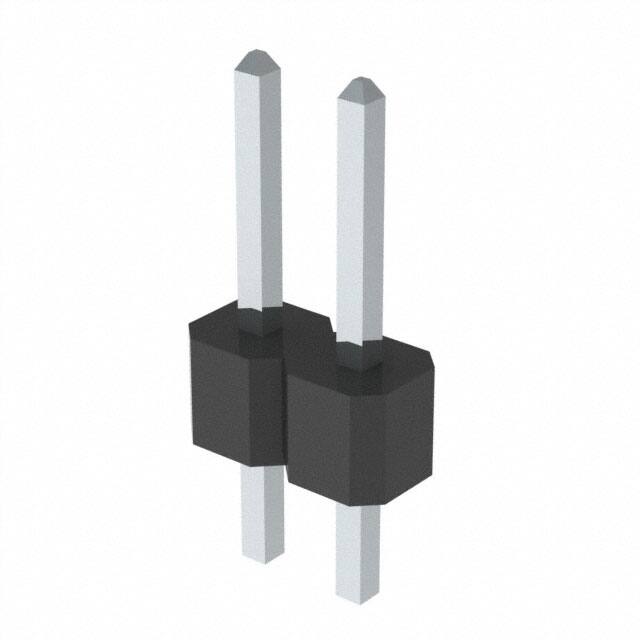

PEC02SAAN

Teknik Özellikler

Insulation Height

0.100 2.54mm

Number Of Pcb Rows

1

Contact Finish Thickness Mating

100.0μin 2.54μm

Nem Hassasiyeti (MSL)

Not Applicable

Reliability

COMMERCIAL

Uzunluk

5.08mm

Montaj Tipi

Through Hole

Shrouding

Unshrouded

Overall Contact Length

0.450 11.43mm

Filter Feature

NO

RoHS Durumu

ROHS3 Compliant

Insulation Materials

Polybutylene Terephthalate (PBT)

Number Of Conductors

ONE

Contact Finish Mating

Tin

Contact Materials

Phosphor Bronze

Housing Material

Plastic

Montaj

Through Hole

Terminal

Solder

Number Of Positions Loaded

All

Dielectric Withstanding Voltage

600VDC V

Çalışma Sıcaklığı

-65°C~125°C

Kurşunsuz

Lead Free

Pozisyon Sayısı

2

ECCN Kodu

EAR99

Iec Conformance

NO

Din Conformance

NO

Contact Finish Thickness Post

100.0μin 2.54μm

Rated Current Signal

3A

Parça Durumu

Active

Yükseklik

8.71mm

Mil Conformance

NO

Connector Type

Header, Breakaway

Sıra Sayısı

1

Material Flammability Rating

UL94 V-0

Kurşunsuz Kodu

yes

Pitch Mating

0.100 2.54mm

Pcb Contact Pattern

RECTANGULAR

Contact Type

Male Pin

Reference Standard

UL

Mixed Contacts

NO
