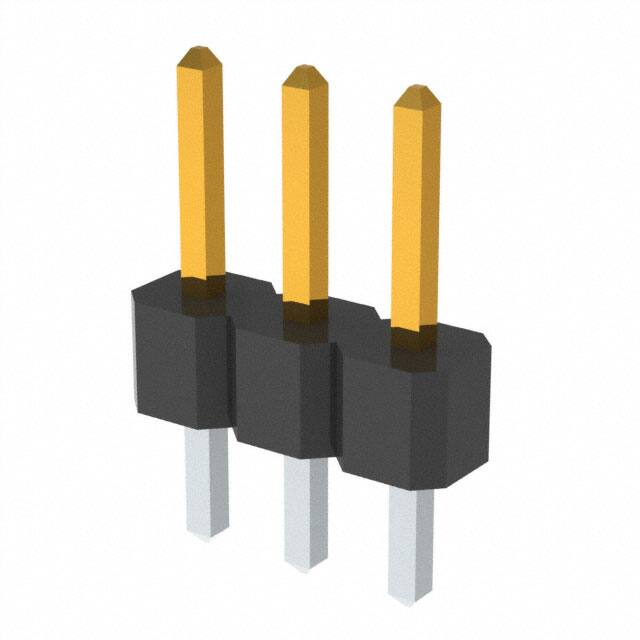

PBC03SAAN

Teknik Özellikler

Reliability

COMMERCIAL

Rated Current Signal

3A

Contact Type

Male Pin

Number Of Pcb Rows

1

Option

GENERAL PURPOSE

Reference Standard

UL

Contact Finish Mating

Gold

Overall Contact Length

0.450 11.43mm

Insulation Height

0.100 2.54mm

Insulation Resistance

5000000000Ohm

Ambalaj

Bulk

Ul Flammability Code

94V-0

Terminal

Solder

Mil Conformance

NO

Akım Değeri

3A

Additional Feature

ROHS COMPLIANT

Yükseklik

8.71mm

Filter Feature

NO

Fastening Type

Push-Pull

Montaj

Through Hole

Yayın Yılı

2011

Number Of Positions Loaded

All

ECCN Kodu

EAR99

Style

Board to Board or Cable

Genişlik

2.54mm

Uzunluk

7.62mm

Pozisyon Sayısı

3

Pitch Mating

0.100 2.54mm

Insulation Materials

Polybutylene Terephthalate (PBT)

Contact Materials

Phosphor Bronze

Nem Hassasiyeti (MSL)

Not Applicable

Contact Finish Thickness Mating

10.0μin 0.25μm

Pcb Contact Pattern

RECTANGULAR

Mixed Contacts

NO

Gender

Male

Din Conformance

NO

Iec Conformance

NO

Shrouding

Unshrouded

Contact Finish Thickness Post

100.0μin 2.54μm

Contact Lengthmating

0.230 5.84mm
