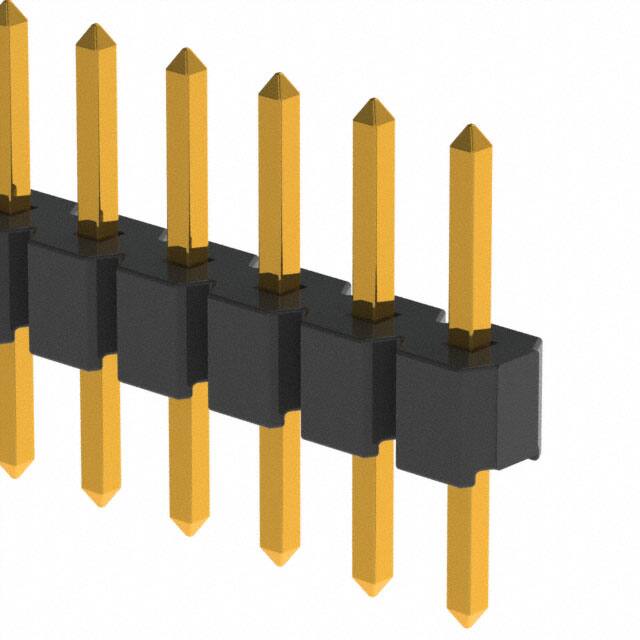

NRPN401PAEN-RC

Teknik Özellikler

Contact Length Post

0.110 2.79mm

Terminal Adımı

2mm

Contact Finish Thickness Mating

Flash

Montaj Tipi

Through Hole

Pitch Mating

0.079 2.00mm

Contact Shape

Square

Iec Conformance

NO

RoHS Durumu

ROHS3 Compliant

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulation Height

0.079 2.00mm

Parça Durumu

Active

Overall Contact Length

0.331 8.40mm

Montaj

Through Hole

Filter Feature

NO

Fabrika Tedarik Süresi

11 Weeks

Çalışma Sıcaklığı

-40°C~105°C

Connector Type

Header

Shrouding

Unshrouded

Contact Lengthmating

0.141 3.60mm

Akım Değeri

2A

Style

Board to Board or Cable

Insulation Color

Black

JESD-609 Kodu

e4

Pozisyon Sayısı

40

Mil Conformance

NO

Insulation Materials

Polyamide (PA6T), Nylon 6T

Ul Flammability Code

94V-0

Contact Type

Male Pin

Mixed Contacts

NO

Yayın Yılı

2008

Contact Materials

Brass

Material Flammability Rating

UL94 V-0

Kurşunsuz Kodu

yes

Terminal

Solder

Contact Finish Mating

Gold

Number Of Positions Loaded

All

Din Conformance

NO

Sıra Sayısı

1

Fastening Type

Push-Pull

Option

GENERAL PURPOSE
