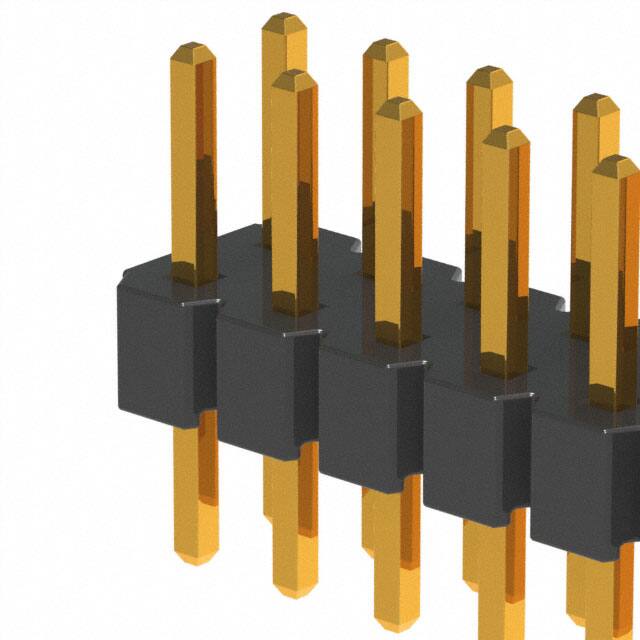

NRPN102PAEN-RC

Teknik Özellikler

RoHS Durumu

ROHS3 Compliant

Nem Hassasiyeti (MSL)

Not Applicable

Yükseklik

5.95mm

Contact Shape

Square

Contact Length Post

0.110 2.79mm

Contact Finish Thickness Mating

Flash

Montaj Tipi

Through Hole

Pitch Mating

0.079 2.00mm

Montaj

Through Hole

Row Spacing Mating

0.079 (2.00mm)

Length Termination

0.11 inch

Parça Durumu

Active

Overall Contact Length

0.330 8.38mm

Insulation Height

0.079 2.00mm

Rated Current Signal

1A

Connector Type

Header

Çalışma Sıcaklığı

-40°C~105°C

Body Length Or Diameter

0.787 inch

Reliability

COMMERCIAL

Number Of Conductors

ONE

Body Depth

0.079 inch

Insulation Color

Black

Pozisyon Sayısı

20

Akım Değeri

2A

Style

Board to Board or Cable

Contact Lengthmating

0.141 3.60mm

Shrouding

Unshrouded

Yayın Yılı

2008

Dielectric Withstanding Voltage

500VAC V

Contact Type

Male Pin

Insulation Materials

Polyamide (PA6T), Nylon 6T

Reference Standard

UL

Contact Materials

Brass

Material Flammability Rating

UL94 V-0

Insulation Resistance

5000000000Ohm

Number Of Pcb Rows

2

Number Of Positions Loaded

All

Contact Finish Mating

Gold

Mating Contact Pitch

0.079 inch

Terminal

Solder
