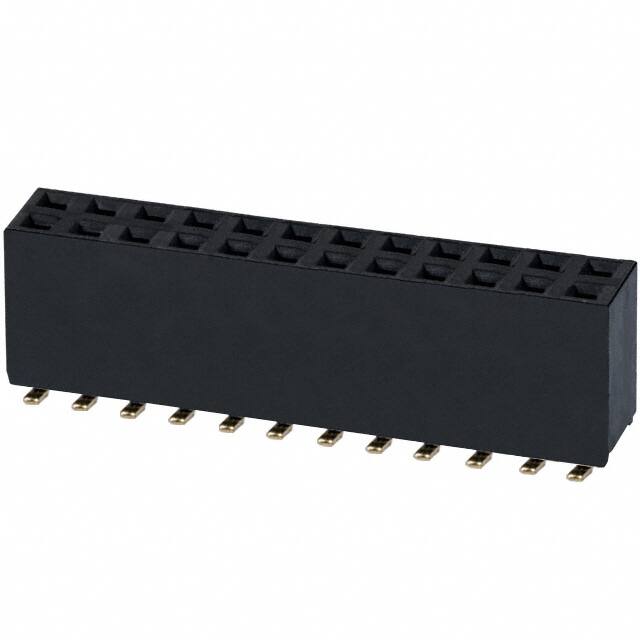

NPPC122KFMS-RC

Teknik Özellikler

Contact Finish Thickness Mating

Flash

Uzunluk

31mm

Yükseklik

7.1mm

Kurşunsuz Kodu

yes

Body Breadth

0.197 inch

Pitch Mating

0.100 2.54mm

Montaj

Surface Mount

Housing Material

Nylon

Housing Color

Black

Çalışma Sıcaklığı

-40°C~125°C

Nominal Gerilim

250V

Reliability

COMMERCIAL

Contact Shape

Square

Ambalaj

Tube

Insulation Materials

Polyamide (PA6T), Nylon 6T

Number Of Pcb Rows

2

Sıra Sayısı

2

Pozisyon Sayısı

24

Terminal

Solder

Kurşunsuz

Lead Free

Genişlik

5mm

Fastening Type

Push-Pull

Contact Finish Mating

Gold

Polarization Key

POLARIZED HOUSING

Parça Durumu

Active

Contact Type

Female Socket

Current Rating Amps

3A

Reference Standard

UL

Connector Type

Header

RoHS Durumu

ROHS3 Compliant

Mating Contact Pitch

0.1 inch

Pcb Contact Pattern

RECTANGULAR

Material Flammability Rating

UL94 V-0

Style

Board to Board

Insulation Height

0.299 7.60mm

Row Spacing Mating

0.100 (2.54mm)

Montaj Tipi

Surface Mount

Total Number Of Contacts

24

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Conductors

ONE
