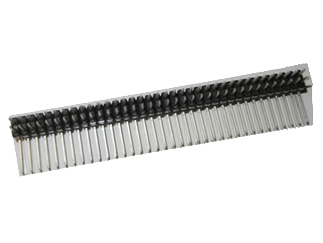

GEC36DBDN

Teknik Özellikler

Montaj Tipi

Through Hole, Right Angle

Number Of Positions Loaded

All

Reliability

COMMERCIAL

Contact Type

Male Pin

Reference Standard

UL

JESD-609 Kodu

e3

Kurşunsuz

Lead Free

Insulation Height

0.240 6.10mm

Pitch Mating

0.100 2.54mm

Parça Durumu

Active

Contact Shape

Square

Current Rating Amps

3A

Number Of Pcb Rows

2

Number Of Conductors

ONE

Sıra Sayısı

2

Çalışma Sıcaklığı

-65°C~150°C

Fastening Type

Push-Pull

Pozisyon Sayısı

72

Contact Lengthmating

0.230 5.84mm

Connector Type

Header, Breakaway

Contact Materials

Phosphor Bronze

Terminal

Solder

Row Spacing Mating

0.100 (2.54mm)

Montaj

Through Hole

Yayın Yılı

2014

Length Termination

0.4 inch

RoHS Durumu

ROHS3 Compliant

Contact Finish Thickness Post

100.0μin 2.54μm

Plating Thickness

10μin

Body Length Or Diameter

3.6 inch

Shrouding

Unshrouded

Style

Board to Board or Cable

Material Flammability Rating

UL94 V-0

Contact Finish Mating

Tin

Contact Length Post

0.400 10.16mm

Fabrika Tedarik Süresi

3 Weeks

Insulation Color

Black

Contact Finish Thickness Mating

100.0μin 2.54μm

Insulation Materials

Polyamide (PA9T), Nylon 9T

Nem Hassasiyeti (MSL)

1 (Unlimited)
