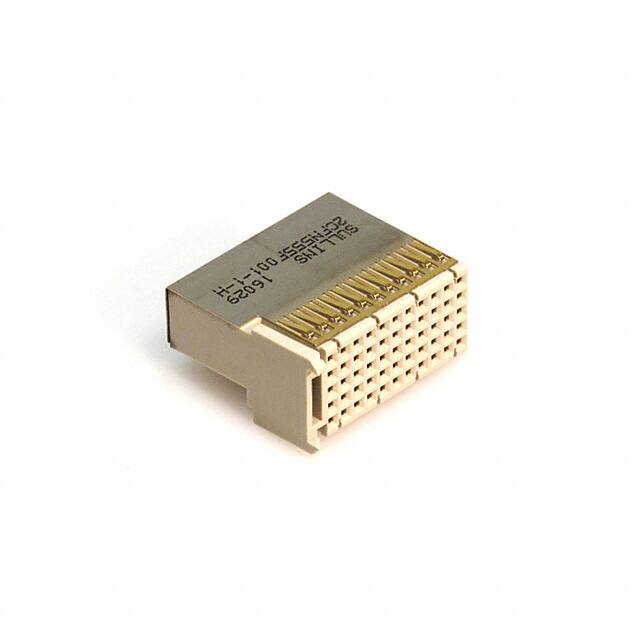

2CF555F001-1-H

Teknik Özellikler

Total Number Of Contacts

55

Parça Durumu

Obsolete

Body Length Or Diameter

0.981 inch

Montaj

Through Hole

Reliability

COMMERCIAL

Connector Usage

CompactPCI

Contact Materials

Bronze

Özellikler

Board Guide, Upper Shield

Montaj Tipi

Through Hole, Right Angle

Contact Finish

Gold

Insulation Resistance

10000000000Ohm

Number Of Positions Loaded

All

Sıra Sayısı

5

Terminal

Press-Fit

Number Of Conductors

ONE

Pitch

0.079 2.00mm

Ambalaj

Tube

Additional Feature

SHIELDED

Contact Finish Thickness

30.0μin 0.76μm

Yayın Yılı

2001

Body Breadth

0.48 inch

Connector Style

C 11

Mating Contact Row Spacing

0.079 inch

Contact Resistance

70mOhm

Contact Style

SQ PIN-SKT

Plating Thickness

30μin

Nem Hassasiyeti (MSL)

Not Applicable

Akım Değeri

1A

Pcb Contact Pattern

RECTANGULAR

Reference Standard

UL, CSA

Bodyshell Style

PLUG

Rated Current Signal

1A

ECCN Kodu

EAR99

Contact Pattern

RECTANGULAR

Connector Type

Receptacle, Female Sockets

RoHS Durumu

Non-RoHS Compliant

Çalışma Sıcaklığı

-65°C~125°C

Length Termination

0.118 inch

Polarization Key

POLARIZED HOUSING

Kurşunsuz

Contains Lead
