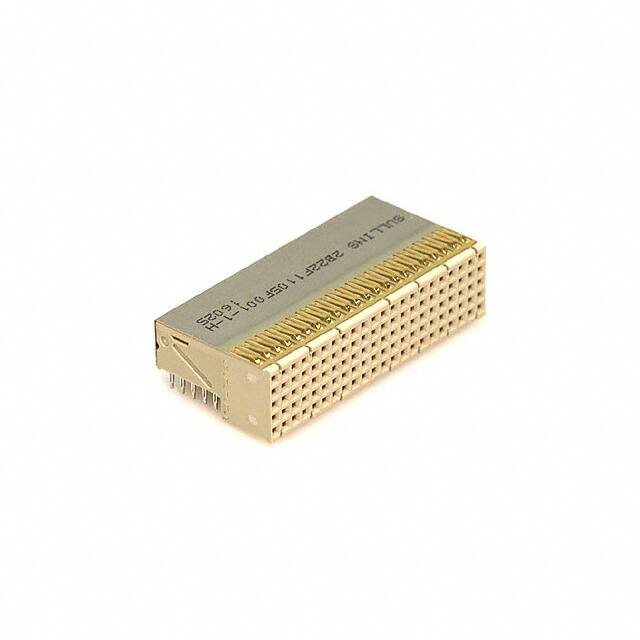

2B22F1105F001-1-H

Teknik Özellikler

Rated Current Signal

1.5A

Özellikler

Upper Shield

Pozisyon Sayısı

110

Polarization Key

POLARIZED HOUSING

Total Number Of Contacts

110

Additional Feature

SHIELDED

Connector Type

Receptacle, Female Sockets

Connector Style

B 22

Nem Hassasiyeti (MSL)

Not Applicable

Housing Material

Plastic

Contact Resistance

70mOhm

Contact Pattern

RECTANGULAR

Pitch

0.079 2.00mm

Connector Usage

CompactPCI

Parça Durumu

Obsolete

Montaj Tipi

Through Hole, Right Angle

ECCN Kodu

EAR99

Body Length Or Diameter

1.732 inch

HTS Kodu

8536.69.40.40

Yayın Yılı

2001

Reference Standard

UL, CSA

Dielectric Withstanding Voltage

750VAC V

Contact Finish Thickness

30.0μin 0.76μm

Number Of Positions Loaded

All

Contact Materials

Bronze

Kurşunsuz

Contains Lead

RoHS Durumu

Non-RoHS Compliant

Ambalaj

Tube

Body Breadth

0.445 inch

Withdrawl Forcemin

.139 N

Plating Thickness

30μin

Number Of Conductors

ONE

Number Of Pcb Rows

5

Pcb Contact Pattern

RECTANGULAR

Length Termination

0.118 inch

Pcb Contact Row Spacing

2.0066 mm

Contact Style

SQ PIN-SKT

Akım Değeri

1A

Insertion Forcemax

.7506 N

Contact Finish

Gold
