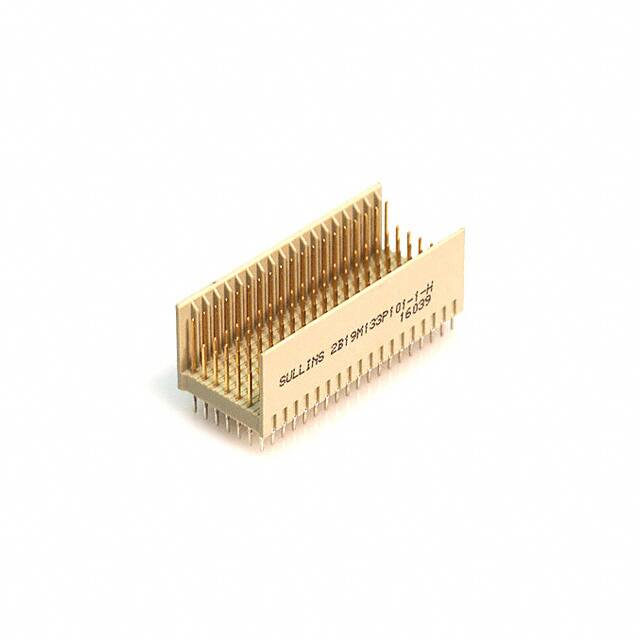

2B19M133P1001-1-H

Teknik Özellikler

Number Of Pcb Rows

7

Pin Sayısı

133

Kurşunsuz

Contains Lead

Withdrawl Forcemin

.139 N

Plating Thickness

30μin

Dielectric Withstanding Voltage

750VAC V

Contact Finish Thickness

30.0μin 0.76μm

Çalışma Sıcaklığı

-65°C~125°C

Terminal

Press-Fit

Insulation Resistance

10000000000Ohm

Bodyshell Style

RECEPTACLE

Mating Contact Row Spacing

0.079 inch

Sıra Sayısı

5 + 2

Contact Style

SQ PIN-SKT

Housing Material

Plastic

Contact Resistance

70mOhm

Body Depth

0.528 inch

Nem Hassasiyeti (MSL)

Not Applicable

Connector Type

Header, Male Pins

Additional Feature

SHIELDED

Total Number Of Contacts

133

Reference Standard

UL, CSA

Montaj Tipi

Through Hole

Contact Pattern

RECTANGULAR

Number Of Conductors

ONE

Ambalaj

Tube

RoHS Durumu

Non-RoHS Compliant

Body Breadth

0.606 inch

Contact Materials

Bronze

Number Of Positions Loaded

All

Reliability

COMMERCIAL

Contact Finish

Gold

Insertion Forcemax

.7506 N

Montaj

Through Hole

Akım Değeri

1A

Length Termination

0.146 inch

Pcb Contact Row Spacing

2.0066 mm

Pcb Contact Pattern

RECTANGULAR

Connector Style

B 19

Pozisyon Sayısı

133 (95 + 38 Ground)
