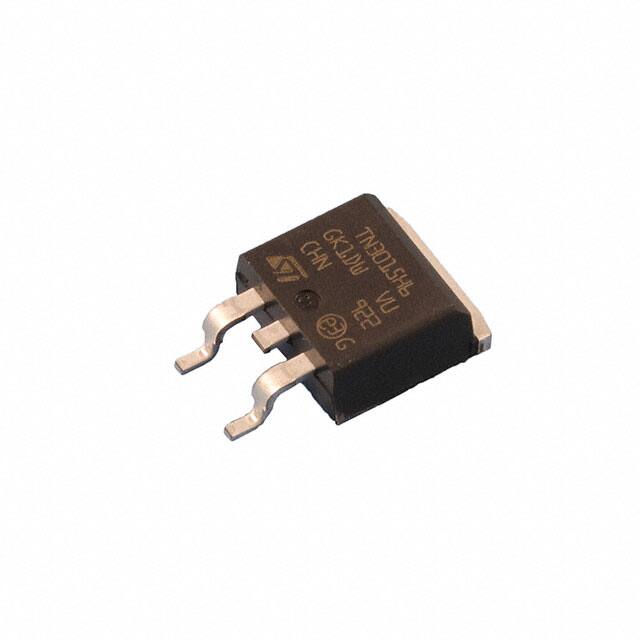

TN3015H-6G

Teknik Özellikler

Voltage On State Vtm Max

1.6V

Current Gate Trigger Igt Max

15mA

Trigger Device Type

SCR

Montaj Tipi

Surface Mount

RoHS Durumu

ROHS3 Compliant

Fabrika Tedarik Süresi

15 Weeks

Kılıf / Paket

TO-263-3, D2Pak (2 Leads + Tab), TO-263AB

Current On State It Av Max

19A

Current Non Rep Surge5060hz Itsm

270A 295A

Current Hold Ih Max

60mA

Seri

ECOPACK®2

Current Off State Max

10μA

Nem Hassasiyeti (MSL)

1 (Unlimited)

Çalışma Sıcaklığı

-40°C~150°C TJ

Current On State It Rms Max

30A

Voltage Gate Trigger Vgt Max

1.3V

Scr Type

Standard Recovery

Voltageoff State

600mV

Parça Durumu

Active
