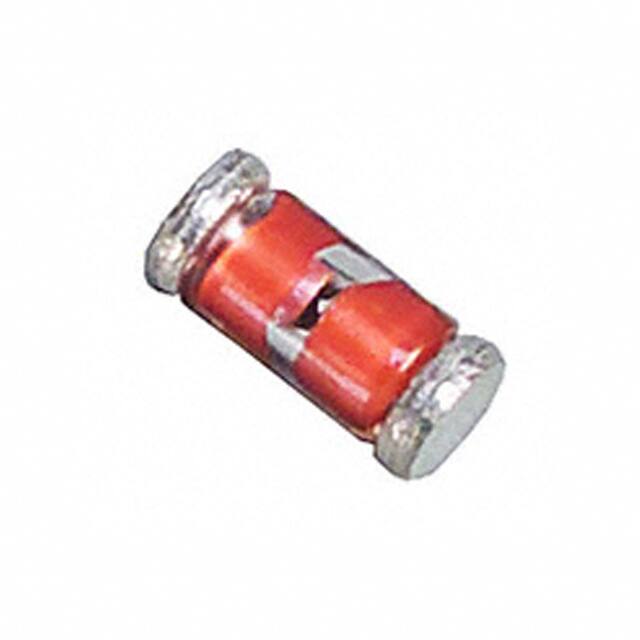

TMMBAT48FILM

Teknik Özellikler

Average Rectified Current

350mA

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Montaj

Surface Mount

Pin Sayısı

2

Kapasitans

20pF

Max Surge Current

7.5A

Operating Temperature Junction

-65°C~125°C

Diode Type

Schottky

Max Reverse Voltage Dc

40V

Terminal Sayısı

2

RoHS Durumu

ROHS3 Compliant

Voltage Rated Dc

40V

Max Junction Temperature Tj

125°C

Terminal Kaplaması

Matte Tin (Sn)

Terminal Formu

WRAP AROUND

Reach Svhc

No SVHC

JESD-609 Kodu

e3

Nem Hassasiyeti (MSL)

1 (Unlimited)

Weight

4.535924g

Outside Diameter

1.62 mm

Recovery Time

10 ns

Maks. Çalışma Sıcaklığı

125°C

Akım Değeri

350mA

Current Reverse Leakage Vr

25μA @ 40V

Polarity

Standard

Uzunluk

3.4mm

Forward Current

350mA

Max Repetitive Reverse Voltage Vrrm

40V

Case Connection

ISOLATED

Yükseklik

1.62mm

Element Configuration

Single

Max Forward Surge Current Ifsm

1.5A

Reverse Voltage

40V

Radyasyon Dayanımı

No

Tepe Reflow Süresi (maks. sn)

30

Output Current

350mA

Terminal

SMD/SMT

Current Average Rectified Io

350mA DC

Peak Nonrepetitive Surge Current

7.5A

Kılıf / Paket

DO-213AA (Glass)
