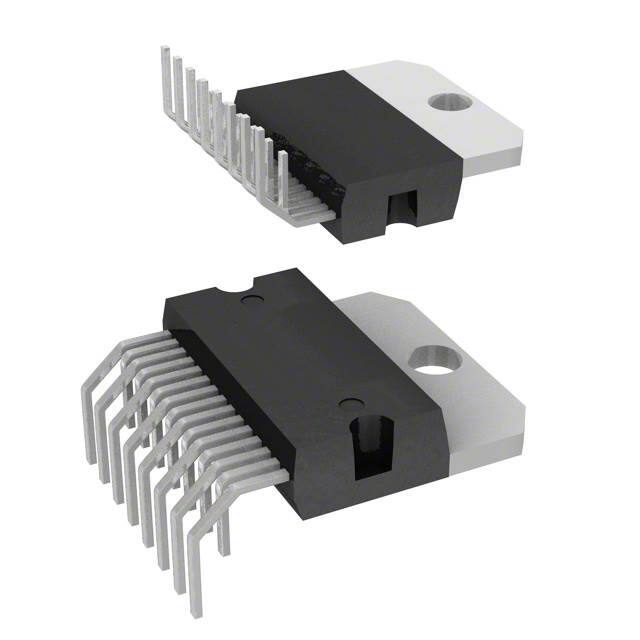

TDA7293HS

Teknik Özellikler

Çalışma Sıcaklığı

0°C~70°C TA

Power Dissipation

50W

Terminal Sayısı

15

Pin Sayısı

15

Gain

80 dB

Özellikler

Depop, Differential Inputs, Mute, Short-Circuit and Thermal Protection, Standby

Pin Sayısı

15

Montaj Tipi

Through Hole

JESD-609 Kodu

e3

Output Power

100W

Max Dual Supply Voltage

50V

Montaj

Through Hole

Besleme Gerilimi

±12V~50V

Temel Parça No

TDA7293

Max Output Power

100W

Harmonic Distortion

10%

Voltage Gain

80dB

Nem Hassasiyeti (MSL)

1 (Unlimited)

Parça Durumu

Active

Max Power Dissipation

50W

Power Supply Rejection Ratio Psrr

75dB

Uzunluk

20.2mm

Min Dual Supply Voltage

12V

Input Offset Voltage Vos

10mV

Bandwidth

20 kHz

Tip

Class AB

Lifecycle Status

ACTIVE (Last Updated: 7 months ago)

Nominal Input Voltage

90V

Power Supplies

+-40V

Load Impedance

8Ohm

Terminal Pozisyonu

ZIG-ZAG

Supply Type

Dual

Kılıf / Paket

Multiwatt-15 (Horizontal, Bent and Staggered Leads)

Dual Supply Voltage

28V

ECCN Kodu

EAR99

Reach Svhc

No SVHC

Çıkış Tipi

1-Channel (Mono)

Max Output Power X Channels Load

100W x 1 @ 4 Ω

RoHS Durumu

ROHS3 Compliant

Number Of Channels

1
