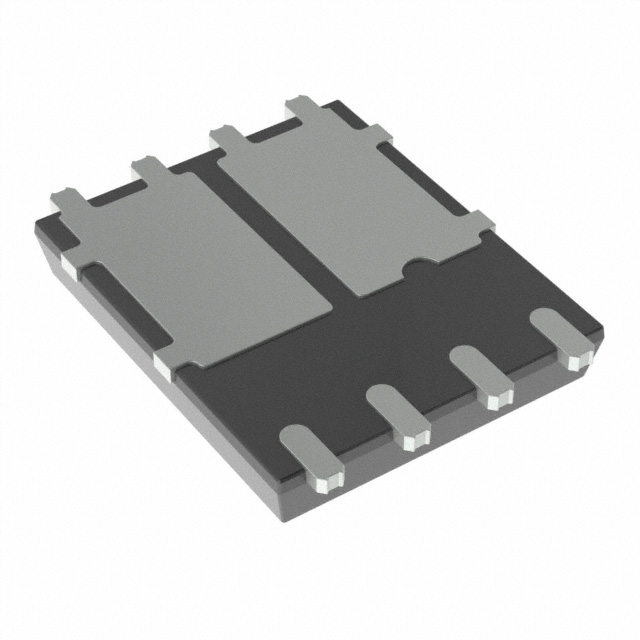

STTH8L02DDJFY-TR

Teknik Özellikler

Jesd30 Code

R-PDSO-F6

Diode Configuration

2 Independent

Number Of Elements

2

Yüzey Montaj

YES

Ambalaj

Tape & Reel (TR)

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Voltage Dc Reverse Vr Max

200V

Diode Element Material

SILICON

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Diode Type

Standard

Parça Durumu

Obsolete

Nem Hassasiyeti (MSL)

1 (Unlimited)

Current Reverse Leakage Vr

3μA @ 200V

Reverse Recovery Time

40ns

Terminal Sayısı

6

RoHS Durumu

ROHS3 Compliant

Current Average Rectified Io

4A

Operating Temperature Junction

-40°C~175°C

Kılıf / Paket

8-PowerVDFN

Reverse Currentmax

3μA

Additional Feature

FREE WHEELING DIODE

Seri

Automotive, AEC-Q101, ECOPACK®2

Rep Pk Reverse Voltagemax

200V

Terminal Pozisyonu

DUAL

Applications

ULTRA FAST RECOVERY

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Temel Parça No

STTH8L02

Operating Temperature Max

175°C

Number Of Phases

1

Case Connection

CATHODE

Montaj Tipi

Surface Mount, Wettable Flank

Voltage Forward Vf Max If

1.1V @ 8A

Terminal Formu

FLAT

Nonrep Pk Forward Currentmax

75A
