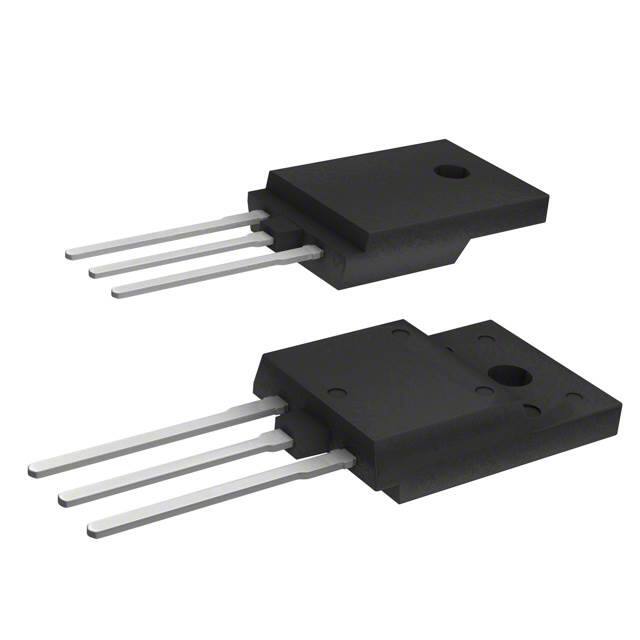

STTH60AC06CPF

Teknik Özellikler

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Applications

HIGH VOLTAGE ULTRA FAST RECOVERY

Element Configuration

Common Cathode

Maks. Çalışma Sıcaklığı

175°C

Case Connection

ISOLATED

Temel Parça No

STTH60

Number Of Phases

1

Montaj Tipi

Through Hole

Voltage Forward Vf Max If

1.75V @ 30A

Reach Svhc

No SVHC

Kurşunsuz

Lead Free

Kılıf / Paket

TO-3P-3 Full Pack

Operating Temperature Junction

175°C Max

Max Surge Current

280A

Additional Feature

FREE WHEELING DIODE

Lifecycle Status

ACTIVE (Last Updated: 7 months ago)

Terminal Pozisyonu

SINGLE

Reverse Recovery Time

40 ns

ECCN Kodu

EAR99

Current Reverse Leakage Vr

10μA @ 600V

Reverse Voltage

600V

Peak Reverse Current

40μA

RoHS Durumu

ROHS3 Compliant

Terminal Sayısı

3

Forward Current

60A

Pin Sayısı

3

Diode Configuration

1 Pair Common Cathode

Fabrika Tedarik Süresi

13 Weeks

Max Reverse Voltage Dc

600V

Average Rectified Current

30A

Montaj

Through Hole

Forward Voltage

2V

Max Forward Surge Current Ifsm

280A

Ambalaj

Tube

Max Repetitive Reverse Voltage Vrrm

600V

Number Of Elements

2

Diode Element Material

SILICON

Recovery Time

50 ns

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Nem Hassasiyeti (MSL)

1 (Unlimited)
