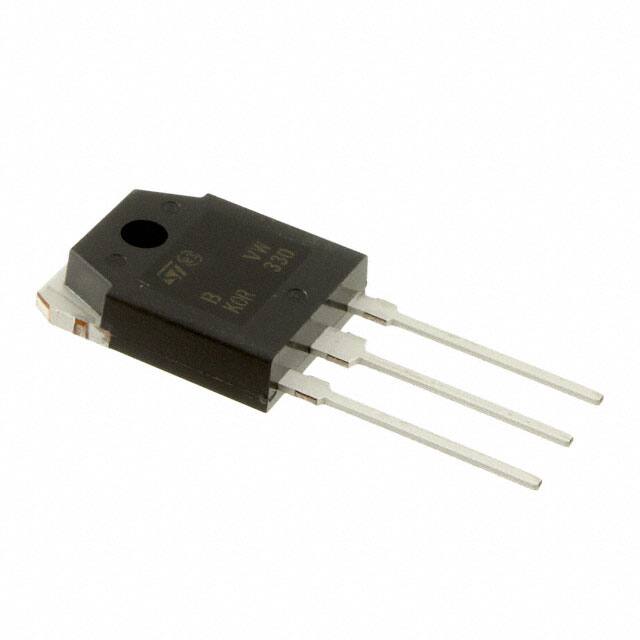

STTH30AC06CP

Teknik Özellikler

Max Surge Current

140A

Average Rectified Current

15A

Additional Feature

FREE WHEELING DIODE

Max Repetitive Reverse Voltage Vrrm

600V

Diode Configuration

1 Pair Common Cathode

Diode Type

Standard

ECCN Kodu

EAR99

Max Reverse Voltage Dc

600V

Maks. Çalışma Sıcaklığı

175°C

Reverse Recovery Time

55 ns

Peak Reverse Current

40μA

Kılıf / Paket

TO-3PF

Number Of Phases

1

Voltage Forward Vf Max If

1.95V @ 15A

Ambalaj

Tube

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Nem Hassasiyeti (MSL)

1 (Unlimited)

Applications

HIGH VOLTAGE ULTRA FAST RECOVERY

Max Forward Surge Current Ifsm

140A

Terminal Sayısı

3

Element Configuration

Common Cathode

Current Reverse Leakage Vr

10μA @ 600V

Pin Sayısı

3

Peak Nonrepetitive Surge Current

140A

Temel Parça No

STTH30

Recovery Time

40 ns

Forward Voltage

2.25V

Kurşunsuz

Lead Free

Montaj Tipi

Through Hole

RoHS Durumu

ROHS3 Compliant

Operating Temperature Junction

-65°C~175°C

Terminal Pozisyonu

SINGLE

Number Of Elements

2

Reach Svhc

No SVHC

Parça Durumu

Obsolete

Speed

Fast Recovery =< 500ns, > 200mA (Io)

Diode Element Material

SILICON

Forward Current

30A

Reverse Voltage

600V

Montaj

Through Hole
