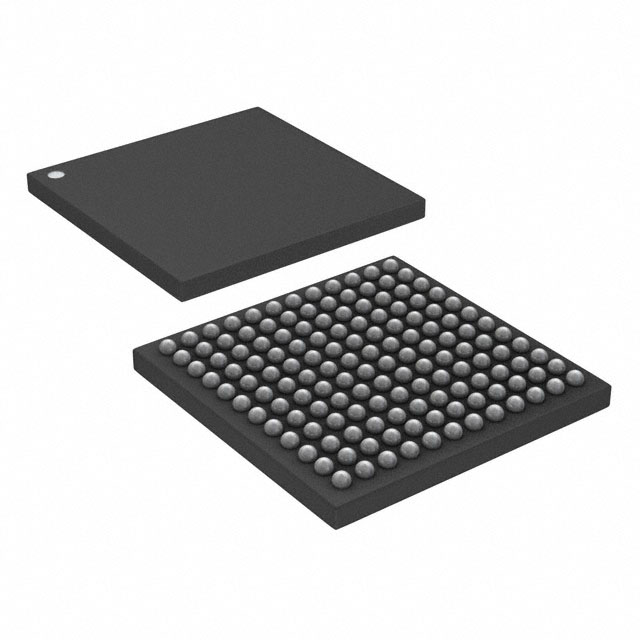

STM32L4R9ZIY6TR

Teknik Özellikler

Ram Size

640K x 8

Supply Voltagemin Vsup

1.8V

Terminal Formu

BALL

Core Processor

ARM® Cortex®-M4

RoHS Durumu

ROHS3 Compliant

Terminal Sayısı

144

Kılıf / Paket

144-UFBGA, WLCSP

Has Adc

YES

Program Memory Size

2MB 2M x 8

Çalışma Sıcaklığı

-40°C~85°C TA

Oscillator Type

Internal

Seri

STM32L4R

Nem Hassasiyeti (MSL)

1 (Unlimited)

Address Bus Width

26

Terminal Pozisyonu

BOTTOM

Ambalaj

Tape & Reel (TR)

Voltage Supply Vccvdd

1.71V~3.6V

Besleme Gerilimi

3V

Core Size

32-Bit

External Data Bus Width

16

Speed

120MHz

Peripherals

Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT

Data Converters

A/D 16x12b; D/A 2x12b

Connectivity

CANbus, EBI/EMI, I2C, IrDA, LINbus, MMC/SD, SAI, SPI, UART/USART, USB OTG

Pwm Channels

YES

Supply Voltagemax Vsup

3.6V

Tepe Reflow Süresi (maks. sn)

NOT SPECIFIED

Genişlik

5.24mm

Dma Channels

YES

Tepe Reflow Sıcaklığı (°C)

NOT SPECIFIED

Temel Parça No

STM32L4R9

Number Of Ios

112

Clock Frequency

48MHz

Fabrika Tedarik Süresi

12 Weeks

Program Memory Type

FLASH

Uzunluk

5.24mm

Lifecycle Status

ACTIVE (Last Updated: 6 months ago)

Upsucsperipheral Ics Type

MICROCONTROLLER, RISC

Parça Durumu

Active

Yüzey Montaj

YES
