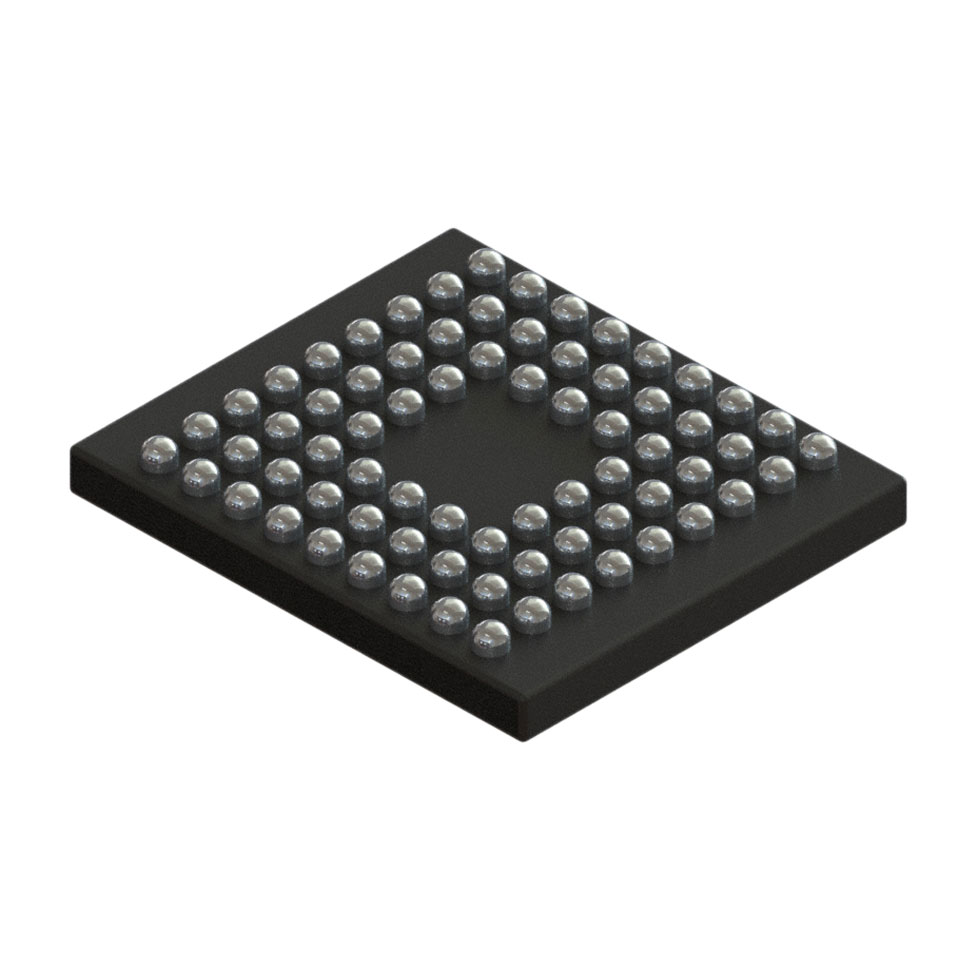

STM32L476JGY6TR

Teknik Özellikler

Number Of Dma Channels

14

Çalışma Sıcaklığı

-40°C~85°C TA

Maks. Oturma Yüksekliği

0.585mm

Connectivity

CANbus, I2C, IrDA, LINbus, MMC/SD, QSPI, SAI, SPI, SWPMI, UART/USART, USB OTG

RoHS Durumu

ROHS3 Compliant

Cpu Family

CORTEX-M4

Boundary Scan

YES

Frekans

80MHz

Program Memory Size

1MB 1M x 8

Oscillator Type

Internal

On Chip Data Ram Width

8

Data Converters

A/D 16x12b; D/A 2x12b

Seri

STM32L4

Pin Sayısı

72

Number Of External Interrupts

16

Terminal Formu

BALL

Integrated Cache

NO

HTS Kodu

8542.31.00.01

Terminal Sayısı

72

Fabrika Tedarik Süresi

12 Weeks

Number Of Timers

17

Temel Parça No

STM32L476

Supply Voltagemax Vsup

3.6V

Ram Words

128000

Dac Channels

YES

Address Bus Width

2

Kurşunsuz

Lead Free

Bit Size

32

Besleme Gerilimi

1.8V

Montaj Tipi

Surface Mount

Parça Durumu

Active

Core Size

32-Bit

On Chip Program Rom Width

8

Has Adc

YES

Genişlik

3.7594mm

ECCN Kodu

3A991.A.2

Terminal Pozisyonu

BOTTOM

Uzunluk

4.4084mm

Dma Channels

YES

Voltage Supply Vccvdd

1.71V~3.6V
