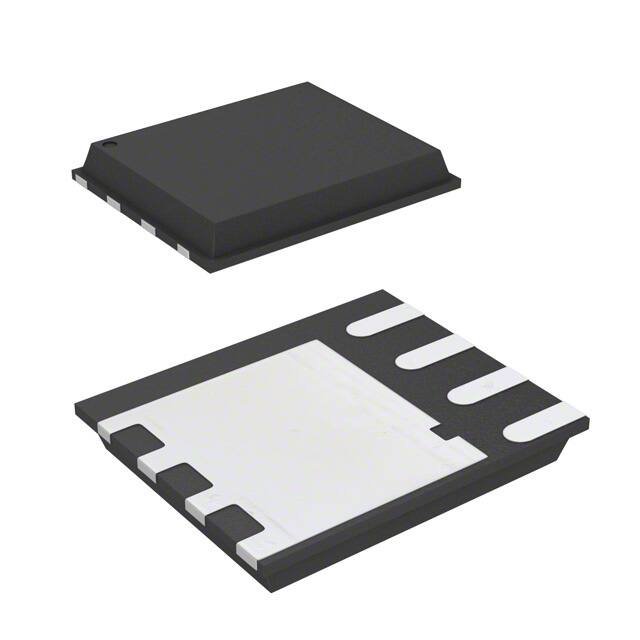

STL40DN3LLH5

Teknik Özellikler

Radyasyon Dayanımı

No

Kurşunsuz

Lead Free

Parça Durumu

Active

Drain Currentmax Abs Id

11A

Drain To Source Voltage Vdss

30V

Gate Charge Qg Max Vgs

4.5nC @ 4.5V

Fabrika Tedarik Süresi

14 Weeks

Terminal Formu

FLAT

ECCN Kodu

EAR99

Fet Type

2 N-Channel (Dual)

Lifecycle Status

ACTIVE (Last Updated: 7 months ago)

Threshold Voltage

1.5V

Max Power Dissipation

60W

Montaj

Surface Mount

Yükseklik

850μm

Terminal Sayısı

6

Pulsed Drain Currentmax Idm

44A

Vgsth Max Id

1.5V @ 250μA

Fet Technology

METAL-OXIDE SEMICONDUCTOR

Reach Svhc

No SVHC

Uzunluk

4.75mm

RoHS Durumu

ROHS3 Compliant

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fet Feature

Standard

Element Configuration

Dual

Ambalaj

Tape & Reel (TR)

Turn On Delay Time

4 ns

Transistor Application

SWITCHING

Rds On Max Id Vgs

18m Ω @ 5.5A, 10V

Operating Mode

ENHANCEMENT MODE

Continuous Drain Current Id

40A

Kılıf / Paket

8-PowerVDFN

Gate To Source Voltage Vgs

22V

Power Dissipation

60W

Rise Time

22ns

Case Connection

DRAIN

Direnç

18MOhm

Fall Time Typ

2.8 ns

Drain To Source Breakdown Voltage

30V

Number Of Elements

2
