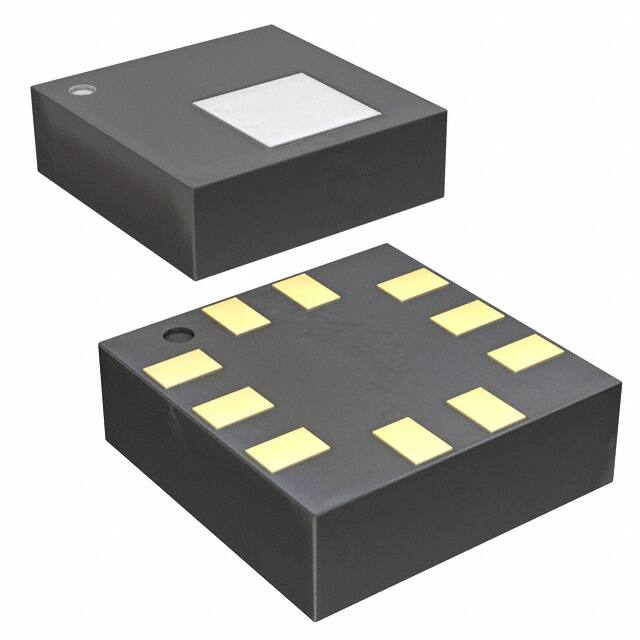

LPS22HBTR

Teknik Özellikler

Terminal

SMD/SMT

Pressure Rangemax

18.27 Psi

Body Length Or Diameter

2mm

Çalışma Sıcaklığı

-40°C~85°C

Lifecycle Status

ACTIVE (Last Updated: 7 months ago)

Terminal Stili

SMD (SMT) Tab

Temel Parça No

LPS22

Çıkış Tipi

I2C, SPI

Sensorstransducers Type

PRESSURE SENSOR,PEIZORESISTIVE

Accuracy

±0.015PSI (±0.1kPa)

Body Breadth

2 mm

Parça Durumu

Active

Output

24 b

Applications

Board Mount

Pressure Type

Absolute

Nem Hassasiyeti (MSL)

3 (168 Hours)

Number Of Bits

24

Ambalaj

Tape & Reel (TR)

Kurşunsuz

Lead Free

Fabrika Tedarik Süresi

16 Weeks

Kılıf / Paket

10-WFLGA Exposed Pad

Terminal Kaplaması

Nickel/Gold (Ni/Au) - electrolytic

Operating Pressure

3.77PSI ~ 18.27PSI (26kPa ~ 126kPa)

Port Style

No Port

Besleme Gerilimi

1.7V~3.6V

JESD-609 Kodu

e4

ECCN Kodu

EAR99

Maximum Pressure

290.08PSI (2000kPa)

Yükseklik

800μm

Manufacturer Package Identifier

HLGA-10L-8479831

Özellikler

Temperature Compensated

Max Pressure

290.08 PSI

Pin Sayısı

10

Yüzey Montaj

YES

Mounting Feature

SURFACE MOUNT

RoHS Durumu

ROHS3 Compliant

Additional Feature

IT ALSO HAVE 4-WIRE INTERFACE, IT HAS PRESSURE SENSITIVITY OF 4096 LSB/HPA
