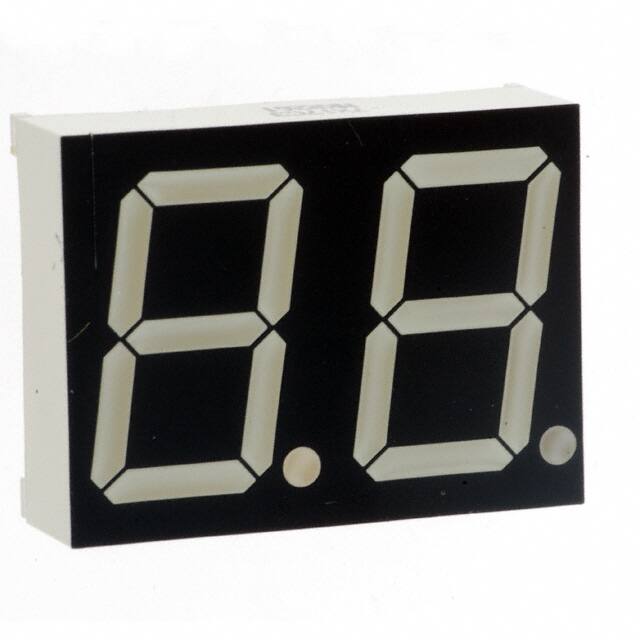

NKR261B

Teknik Özellikler

Renk

Red

Display Type

7-Segment

Digitalpha Size

0.60 15.24mm

Common Pin

Common Cathode

Kurşunsuz

Lead Free

Current Test

20mA

Kurşunsuz Kodu

yes

Boyut / Ölçü

0.748 Hx0.992W x 0.315 D 19.00mmx25.20mmx8.00mm

Nem Hassasiyeti (MSL)

Not Applicable

Yükseklik

18.9992mm

Luminous Intensity

12 mcd

Wavelength Peak

660nm

Operating Temperature Max

85°C

Optoelectronic Device Type

SMART/NORMAL 7 SEG NUMERIC LED DISPLAY

RoHS Durumu

RoHS Compliant

Forward Currentmax

0.03A

Parça Durumu

Obsolete

Voltage Forward Vf Typ

1.7V

Ambalaj

Bulk

Kılıf / Paket

18-DIP

Number Of Characters

2

Fonksiyon Sayısı

2

Operating Temperature Min

-40°C

Power Dissipation Max

60mW
