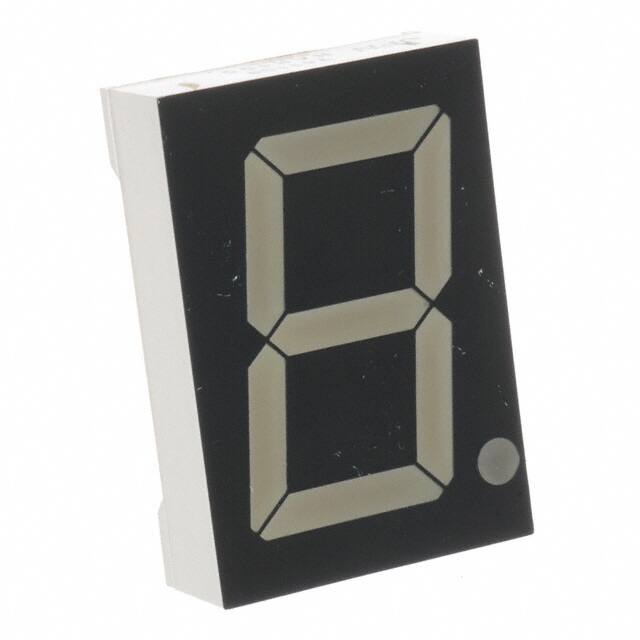

NAR105-B

Teknik Özellikler

Digitalpha Size

1.00 25.40mm

Kılıf / Paket

14-DIP

Millicandela Rating

20mcd

Optoelectronic Device Type

SMART/NORMAL 7 SEG NUMERIC LED DISPLAY

Kurşunsuz Kodu

yes

Display Height

25.4mm

Common Pin

Common Anode

Nem Hassasiyeti (MSL)

Not Applicable

Voltage Forward Vf Typ

3.4V

Renk

Red

Wavelength Peak

660nm

Power Dissipation Max

120mW

Current Test

20mA

Operating Temperature Max

85°C

Number Of Characters

1

Configuration

COMPLEX

Boyut / Ölçü

1.299 Hx0.898W x 0.354 D 33.00mmx22.80mmx9.00mm

Ambalaj

Bulk

Parça Durumu

Obsolete

Display Type

7-Segment

Fonksiyon Sayısı

1

Forward Currentmax

0.03A

RoHS Durumu

RoHS Compliant

Operating Temperature Min

-20°C

REACH Uyumluluk Kodu

compliant
