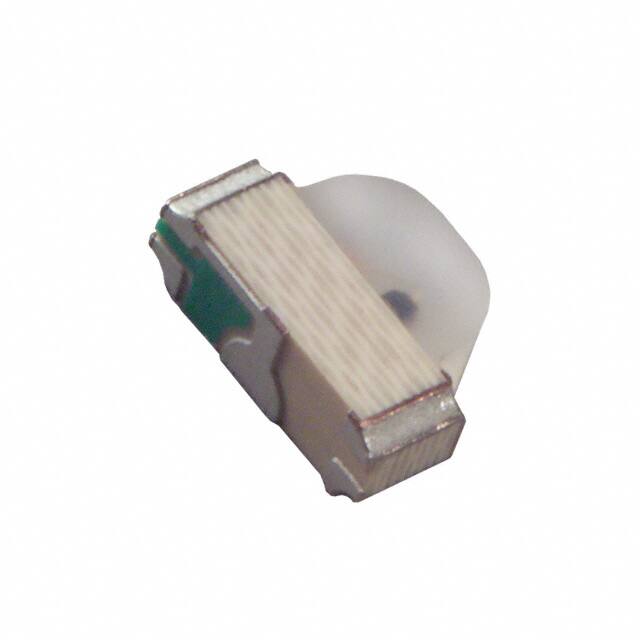

BRPY1211F-TR

Teknik Özellikler

Ambalaj

Tape & Reel (TR)

Seri

1211F

RoHS Durumu

RoHS Compliant

Viewing Angle

148°, 140° Green, 149°, 143° Red

Current Test

20mA Green 20mA Red

Kurşunsuz

Lead Free

Operating Temperature Min

-40°C

Fonksiyon Sayısı

1

Packing Method

TAPE AND REEL 7"

Renk

Green, Red

Optoelectronic Device Type

DUAL COLOR LED

Montaj Tipi

Surface Mount, Right Angle

Millicandela Rating

8.8mcd Green, 17.6mcd Red

Terminal Sayısı

3

HTS Kodu

8531.20.00.20

Configuration

Common Anode

Wavelengthdominant

572nm Green 647nm Red

Lens Style

Rectangle with Domed Top

Kılıf / Paket

2-SMD, No Lead

Yükseklik

2mm

Luminous Intensity

17.6/8.8 mcd

Operating Temperature Max

85°C

Lens Transparency

Diffused

ECCN Kodu

EAR99

Parça Durumu

Active

Forward Currentmax

0.025A

Lens Color

White

Voltage Forward Vf Typ

2.1V Green 1.7V Red

Wavelength Peak

570nm Green 660nm Red

Lens Size

2.00mmx1.00mm

Boyut / Ölçü

3.00mm Lx2.00mm W

Shape

RECTANGULAR

Yüzey Montaj

YES

Nem Hassasiyeti (MSL)

4 (72 Hours)

Fabrika Tedarik Süresi

11 Weeks
