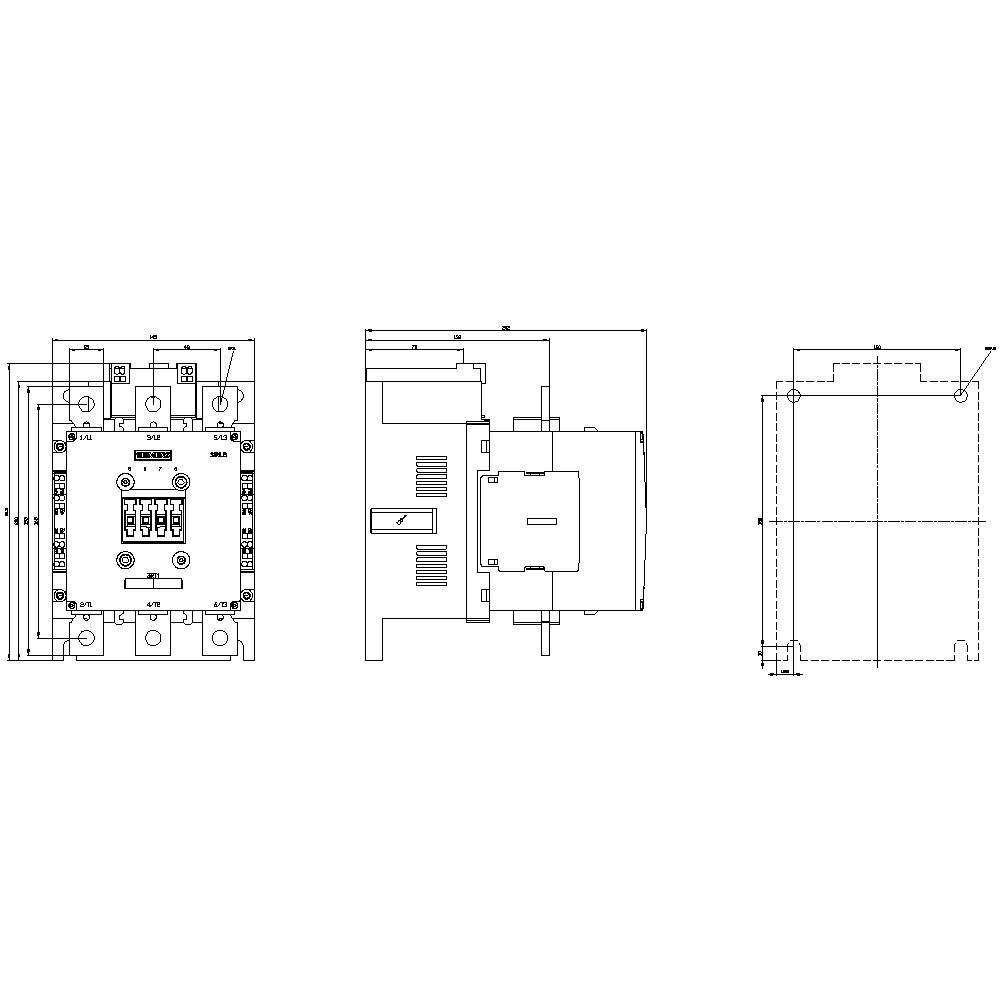

3RT10642NP36

Teknik Özellikler

Number Of Auxiliary Contacts As Normally Open Contact

2

Rated Operation Current Ie At Ac3400 V

225A

Rated Operation Current Ie At Ac4400 V

195A

Yükseklik

210mm

Min Temperature

-25°C

Number Of Auxiliary Contacts As Normally Closed Contact

2

Operate Time

80 ms

Genişlik

145mm

Number Of Normally Closed Contacts As Main Contact

0

Type Of Electrical Connection Of Main Circuit

Rail connection

Nominal Voltage

1000V AC

Contact Rating Current

225 A

Coil Power

580W

Ip Rating

IP00

Kontak Formu

3PST-NO (3 Form A)

Rated Operation Power At Ac3400 V

110kW

Paket

Bulk

Terminal Stili

Spring Terminal

Dim

(W x H x D) 145 x 210 x 202 mm

Ürün Durumu

Active

Çalışma Sıcaklığı

-25°C ~ 60°C

Content

1pc(s)

Contact Type

3 makers

Rated Operation Current Ie At Ac1400 V

275A

Montaj Tipi

Chassis Mount, DIN Rail

Depth

202mm

Modular Version

Yes

Connections

Terminal strip

Rated Control Supply Voltage At Ac50 Hz

200 - 277

Rated Operation Power Nema

110.325

Rohscompliant

Yes

Release Time

100 ms

Coil Voltage

200 ~ 277VAC/DC

Tip

S10

Switching Voltage

1000VAC - Max

Rated Control Supply Voltage At Dc

200 - 277

Voltage Type For Actuating

AC/DC

No Of Pins

3-pin

Rated Control Supply Voltage At Ac60 Hz

200 - 277

Durability

1000 0000
