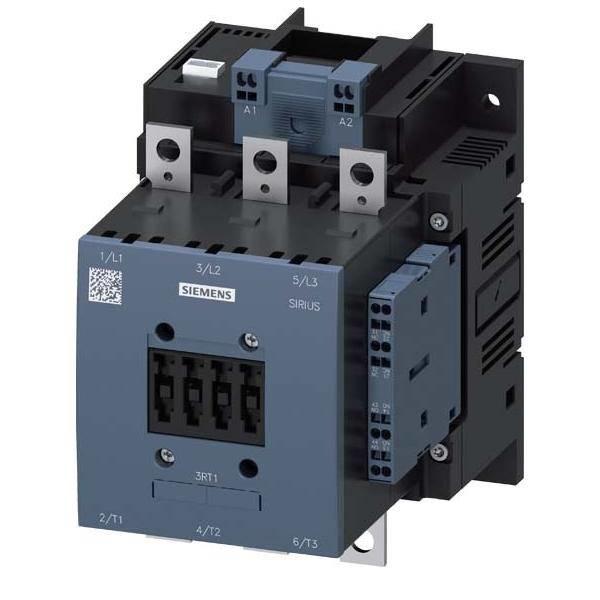

3RT10552XB460LA2

Teknik Özellikler

Rated Operation Power At Ac3400 V

75kW

Kontak Formu

3PST-NO (3 Form A)

Must Operate Voltage

16.8 VDC

Paket

Bulk

Coil Power

320W

Nominal Voltage

1000V AC

Type Of Electrical Connection Of Main Circuit

Screw connection

Contact Rating Current

150 A

Number Of Auxiliary Contacts As Normally Closed Contact

2

Operate Time

75 ms

Genişlik

120mm

Number Of Normally Closed Contacts As Main Contact

0

Yükseklik

172mm

Number Of Auxiliary Contacts As Normally Open Contact

2

Rated Operation Current Ie At Ac4400 V

132A

Rated Operation Current Ie At Ac3400 V

150A

Rated Operation Current Ie At Ac1400 V

185A

Contact Type

3 makers

Coil Current

13.3 A

Content

1pc(s)

Çalışma Sıcaklığı

-40°C ~ 70°C

Ürün Durumu

Active

Dim

(W x H) 120 mm x 172 mm

Terminal Stili

Screw Terminal

Durability

1000 0000

Rated Control Supply Voltage At Dc

24 - 24

Switching Voltage

1000VAC - Max

No Of Pins

3-pin

Voltage Type For Actuating

DC

Tip

S6

Release Time

90 ms

Coil Voltage

24VDC

Connections

Screws

Rated Operation Power Nema

91.937

Rohscompliant

Yes

Modular Version

Yes

Montaj Tipi

Chassis Mount, DIN Rail

Rated Operation Power At Ac4400 V

75kW

Number Of Normally Open Contacts As Main Contact

3

Seri

SIRIUS
