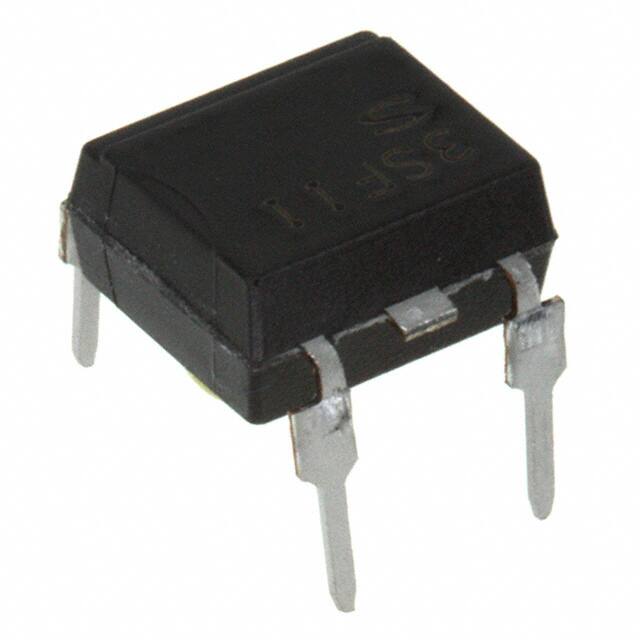

PC3SF11YTZBF

Teknik Özellikler

Power Dissipation

170mW

Kılıf / Paket

6-DIP (0.300, 7.62mm), 5 Leads

Voltage Forward Vf Typ

1.2V

Montaj Tipi

Through Hole

Ambalaj

Tube

Max Input Voltage

1.4V

Montaj

Through Hole

Voltage Isolation

5000Vrms

Onay Kuruluşu

BSI, CSA, DEMKO, FIMKO, SEMKO, UR, VDE

Output Voltage

600V

Additional Feature

UL RECOGNIZED, VDE APPROVED

Kurşunsuz

Lead Free

Parça Durumu

Discontinued

Rms Current Irms

100mA

Çıkış Tipi

Triac

RoHS Durumu

RoHS Compliant

Nominal Input Voltage

1.2V

Hold Current

3.5mA

Çalışma Sıcaklığı

-30°C~100°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Turn On Delay Time

100 μs

Forward Current

50mA

Max Output Current

100mA

Currentholdih

3.5mA

Configuration

SINGLE

Output Current

100mA

Max Input Current

50mA

Pin Sayısı

5

Currentled Triggeriftmax

7mA

Input Current

50mA

Input Trigger Currentnom

7mA

Turn On Time

100μs (Max)

Zerocrossing Circuit

No

Number Of Elements

1

Reverse Breakdown Voltage

6V

Reach Svhc

Unknown

Static Dvdt Min

1kV/μs
