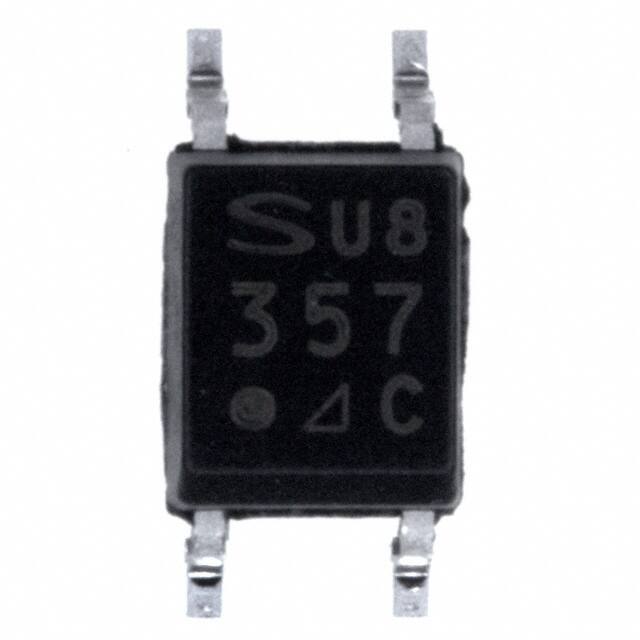

PC357N3J000F

Teknik Özellikler

Rise Fall Time Typ

4μs 3μs

Output Voltage

80V

Additional Feature

UL RECOGNIZED

Montaj

Surface Mount

Fall Time Typ

18 μs

Voltage Isolation

3750Vrms

Montaj Tipi

Surface Mount

Current Transfer Ratiomin

200% @ 5mA

Ambalaj

Tape & Reel (TR)

Voltage Forward Vf Typ

1.2V

Kılıf / Paket

4-SMD, Gull Wing

Power Dissipation

170mW

RoHS Durumu

RoHS Compliant

Radyasyon Dayanımı

No

Çıkış Tipi

Transistor

Max Collector Current

50mA

Kurşunsuz

Lead Free

Output Current Per Channel

50mA

Rise Time

18μs

Vce Saturation Max

200mV

Parça Durumu

Active

Configuration

SINGLE

Collectoremitter Saturation Voltage

100mV

JESD-609 Kodu

e2

Max Output Voltage

80V

Forward Current

50mA

Çalışma Sıcaklığı

-30°C~100°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Giriş Tipi

DC

Reverse Breakdown Voltage

6V

Max Power Dissipation

170mW

Collector Emitter Voltage Vceo

80V

Fabrika Tedarik Süresi

16 Weeks

Number Of Elements

1

Collectoremitter Breakdown Voltage

80V

Yükseklik

3mm

Pin Sayısı

4

Terminal Kaplaması

Tin/Copper (Sn/Cu)

Current Transfer Ratio Max

400% @ 5mA

Max Input Current

50mA
