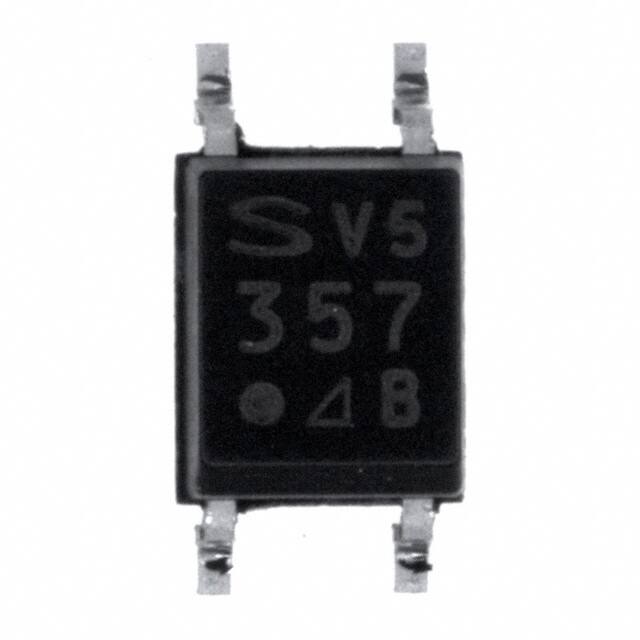

PC357N2J000F

Teknik Özellikler

Output Current Per Channel

50mA

Kurşunsuz

Lead Free

Parça Durumu

Active

Rise Time

18μs

Vce Saturation Max

200mV

Current Output Channel

50mA

Paket

Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;

Radyasyon Dayanımı

No

Max Collector Current

50mA

Current Transfer Ratiomin

130% @ 5mA

Montaj Tipi

Surface Mount

Ambalaj

Tape & Reel (TR)

Kılıf / Paket

4-SMD, Gull Wing

Power Dissipation

170mW

Montaj

Surface Mount

Voltage Isolation

3750Vrms

Ürün Durumu

Active

Yükseklik

3mm

Pin Sayısı

4

Collectoremitter Breakdown Voltage

80V

Contact Plating

Copper, Tin

Fabrika Tedarik Süresi

16 Weeks

Number Of Elements

1

Collector Emitter Voltage Vceo

80V

Forward Current

50mA

Çalışma Sıcaklığı

-30°C~100°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Collectoremitter Saturation Voltage

200mV

Configuration

SINGLE

Number Of Channels

1

JESD-609 Kodu

e2

Max Output Voltage

80V

RoHS Durumu

RoHS Compliant

Current Dc Forward If Max

50 mA

Çıkış Tipi

Transistor

Voltage Forward Vf Typ

1.2V

Voltage Output Max

80V

Rise Fall Time Typ

4μs 3μs

Output Voltage

80V

Additional Feature

UL RECOGNIZED
