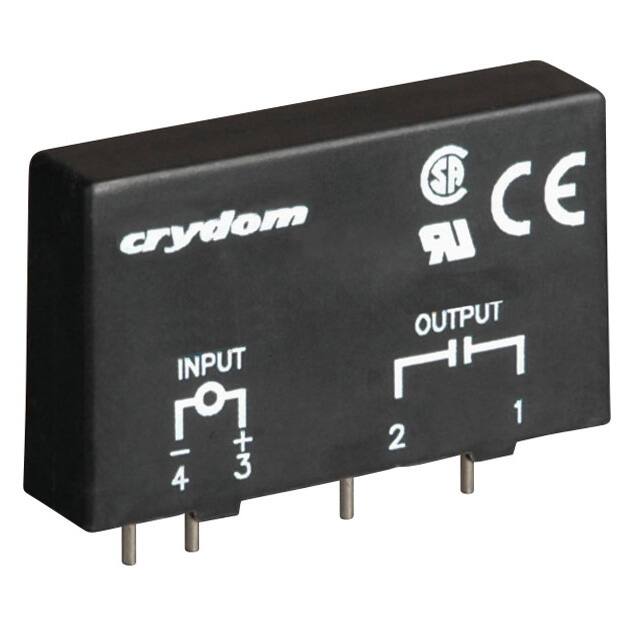

M-OAC5

Teknik Özellikler

Overall Length

43.1 mm

Output Current

2.5 mA

Üretici Parça No

M-OAC5

Seri

M

Operating Temperaturemax

80 °C

Birim Ağırlık

1.100548 oz

Input Voltage

5 VDC

Package Type

Mini

HTS Kodu

8541.40.95.00

Parça Durumu

Active

Turn On Time

8.33ms

Rohs Code

Yes

Isolation

4000 V

Operating Temperature Max Deg C

80C

Additional Feature

UL RECOGNIZED

Control Voltage

5 V

Overall Height

25.4 mm

Forward Currentmax

0.027 A

Isolation Voltagemax

4000 V

Number Of Elements

1

Montaj Stili

PC Board

Tip

AC Output Module

Yayın Yılı

2008

Risk Rank

5.75

Input Voltage Min

3VDC

Ambalaj

Box

Output Circuit Type

Triac

Optoelectronic Device Type

TRIGGER OUTPUT SSR

Ürün Tipi

I/O Modules

Approvals

CE, CSA, UL

Style

Mini

RoHS Durumu

RoHS Compliant

Number Of Circuits

1

Part Life Cycle Code

Not Recommended

Load Voltage Min

12VAC

Agency Approvals

CE/CSA/UL

Input Current

20 mA

Io Isolation Voltage V

4000Vrms

Input Voltage Max

8VDC

Terminal Stili

Plug-In
