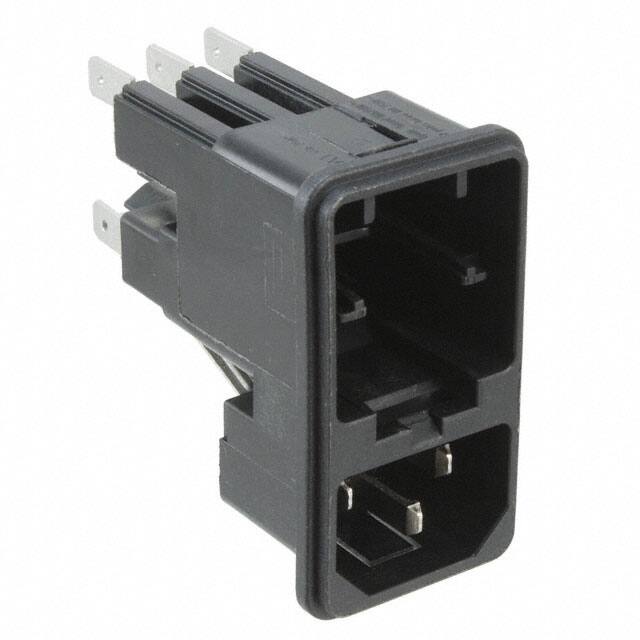

KE10.6100.105

Teknik Özellikler

Number Of Poles

2

Number Of Ports

1

Max Voltage Rating Ac

250V

Onay Kuruluşu

CSA, ENEC, UL

Panel Thickness

0.059 1.50mm

Voltageiec

250VAC

Parça Durumu

Active

Fuse

Yes

Option

GENERAL PURPOSE

Flammability Rating

UL94 V-0

Min. Çalışma Sıcaklığı

-25°C

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Seri

KE

Ingress Protection

IP40

Total Number Of Contacts

3

Connector Style

IEC 320-C14

Voltage Rated Ac

250V

Özellikler

Voltage Selector

Terminal

Quick Connect - 0.189 (4.8mm)

Kılıf / Paket

Module

Connector Type

Receptacle, Male Blades - Module

ECCN Kodu

EAR99

Montaj Tipi

Panel Mount, Snap-In

Filter Type

Unfiltered - Commercial

Voltage Rated Dc

250V

Nem Hassasiyeti (MSL)

Vendor Undefined

Ambalaj

Bulk

Gender

Male

Maks. Çalışma Sıcaklığı

70°C

Radyasyon Dayanımı

No

Material Flammability Rating

UL94 V-0

Akım

10A

Weight

37.500012g

Montaj

Panel, Snap in

Fabrika Tedarik Süresi

13 Weeks

Panel Cutout Dimensions

Rectangular - 27.50mm x 52.50mm

Din Conformance

NO

Fuse Holder Drawer

Drawer Sold Separate

Frekans

50Hz

Orientation

Straight
