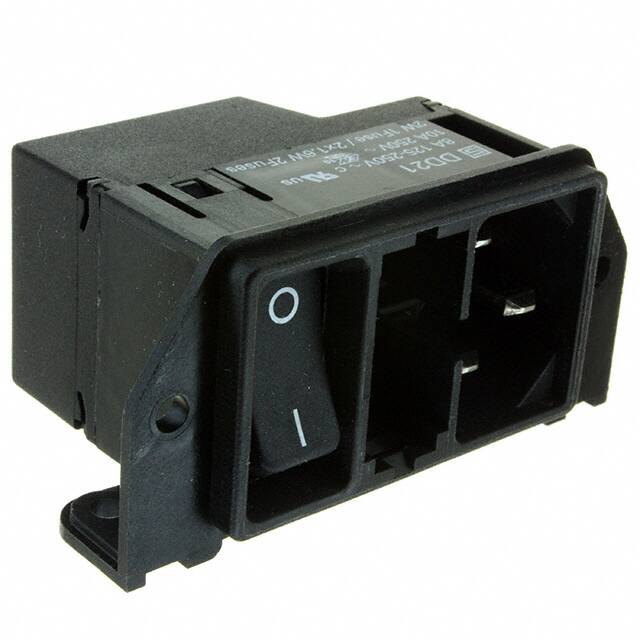

DD21.0124.1111

Teknik Özellikler

Terminal

Solder, Quick Connect - 0.189 (4.8mm)

Montaj

Flanges, Panel, Through Hole

Pozisyon Sayısı

3

ECCN Kodu

EAR99

Kurşunsuz

Lead Free

Reach Svhc

No SVHC

Ingress Protection

IP40

Number Of Ports

1

Voltage Rated Dc

250V

Max Voltage Rating Ac

250V

Shell Material

THRMOPLASTIC

Housing Material

Thermoplastic

Depth

38.1mm

RoHS Durumu

ROHS3 Compliant

Fuse Holder Drawer

Drawer Sold Separate

Seri

DD21

Özellikler

Terminating Cover

Onay Kuruluşu

cULus, ENEC

Weight

37.000012g

Total Number Of Contacts

3

Nem Hassasiyeti (MSL)

Vendor Undefined

Uzunluk

65mm

Montaj Tipi

Panel Mount, Flange; Through Hole, Right Angle

Max Current Rating

10A

Radyasyon Dayanımı

No

Voltageiec

250VAC

Akım

8A

Accomodates A Fuse

Yes (Fuse Not Included)

Connector Style

IEC 320-C14

Ambalaj

Bulk

Akım Değeri

10A

Fuse

Yes

Switch Features

Switch On-Off, Illuminated

Voltage Rated Ac

250V

Option

GENERAL PURPOSE

Flammability Rating

UL94 V-0

Gender

Male

Min. Çalışma Sıcaklığı

-25°C

Orientation

Right Angle

Material Flammability Rating

UL94 V-0
